WH148 10K Ohm Linear Potentiometer B10K with Knob Cap

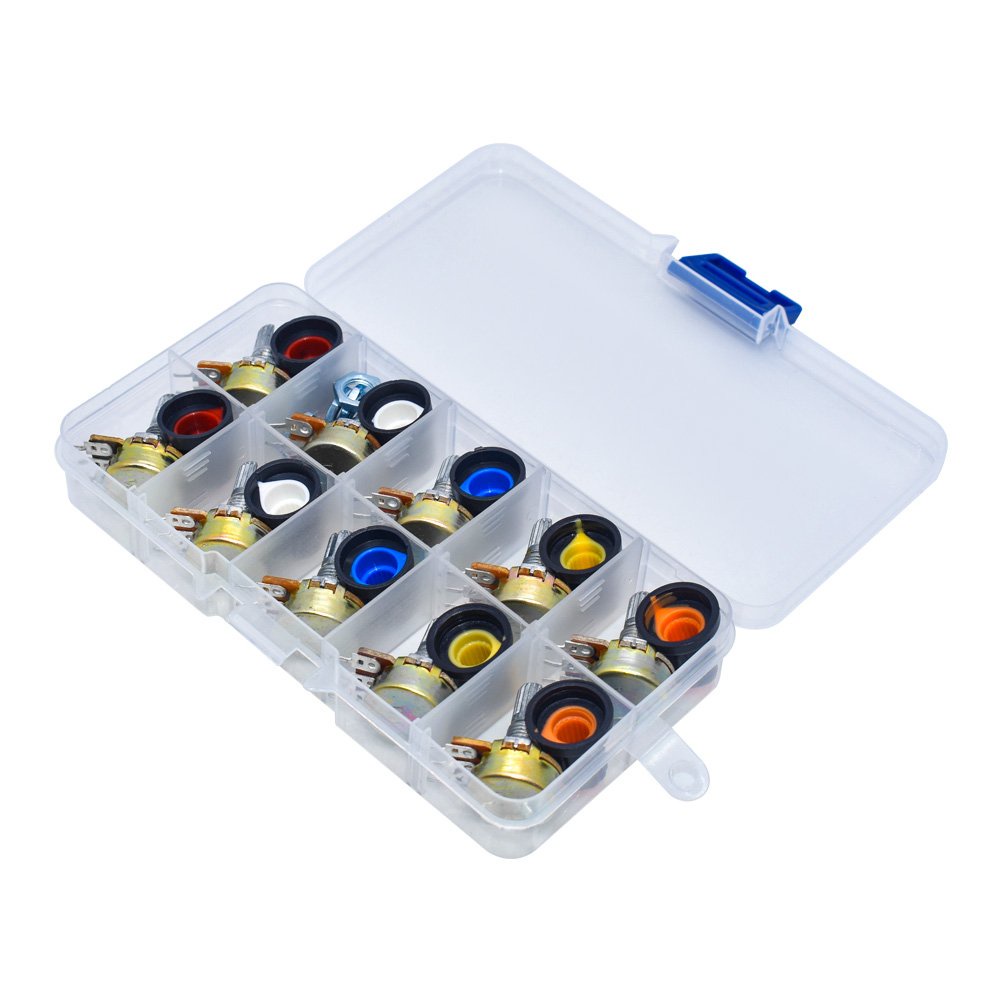

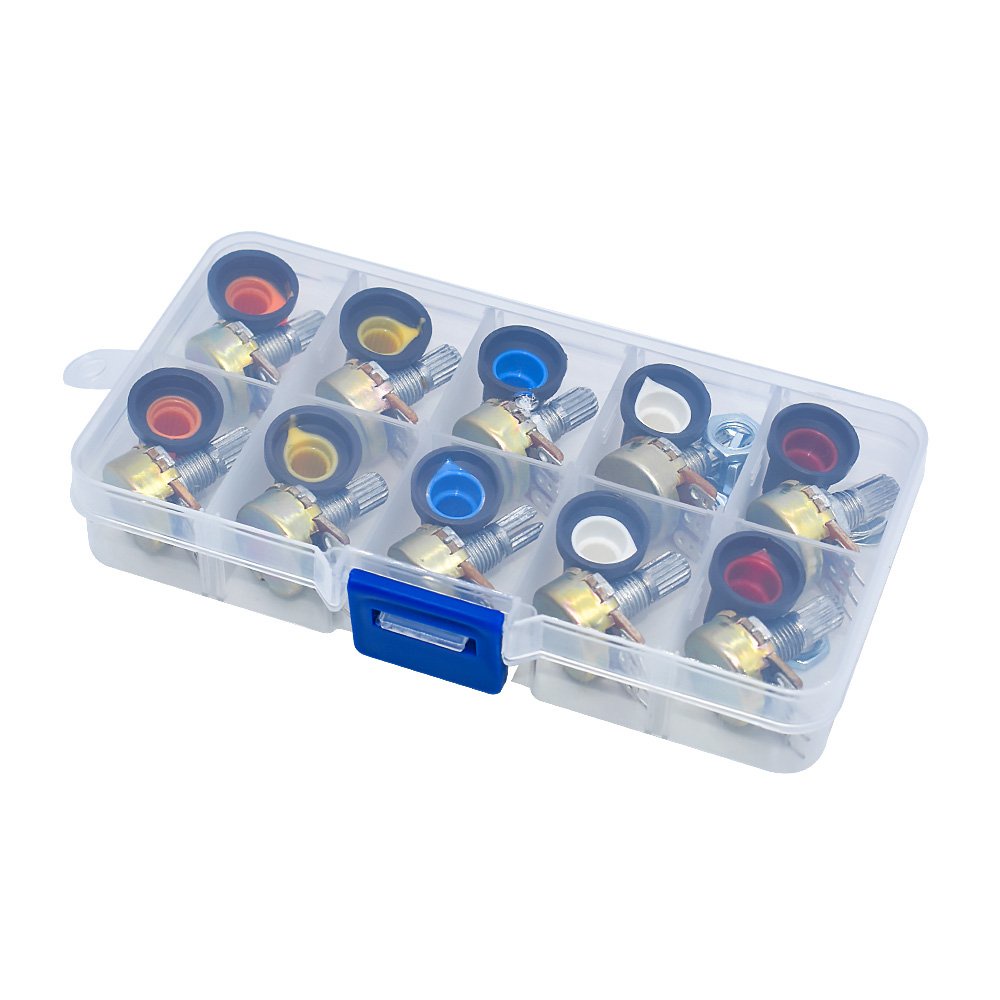

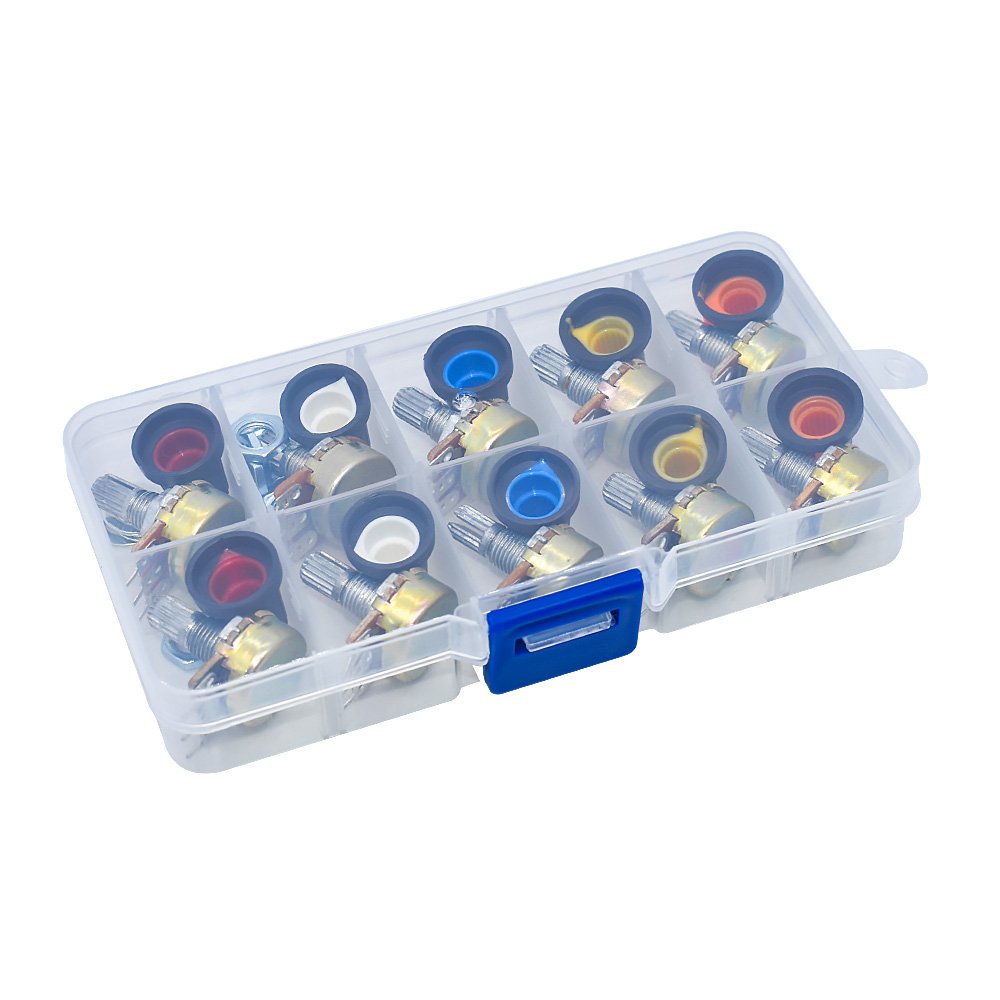

🎛️ WH148 Potentiometer Kit — B1K to 1M, 15 mm Linear Taper, with Knob Caps

A handy set of WH148 single-turn rotary potentiometers covering the common values used in audio, control and sensor projects. Each pot is a B-type linear taper with a 15 mm shaft and a matching cap, so it is ready to drop into a panel or breadboard build.

✨ Key Features

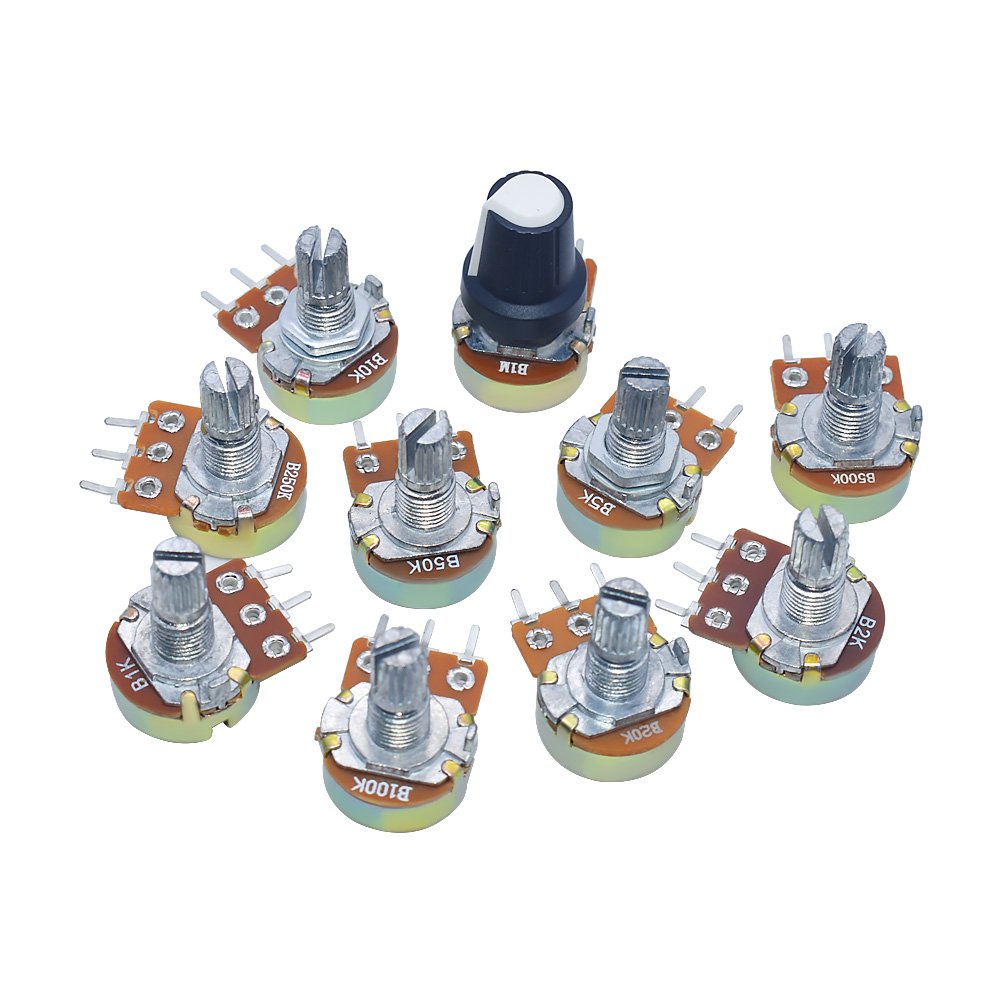

• WH148 rotary potentiometers in popular values: 1K, 2K, 5K, 10K, 20K, 50K, 100K, 250K, 500K and 1M
• B-type linear taper — resistance changes evenly with rotation

• 15 mm shaft for press-fit knobs

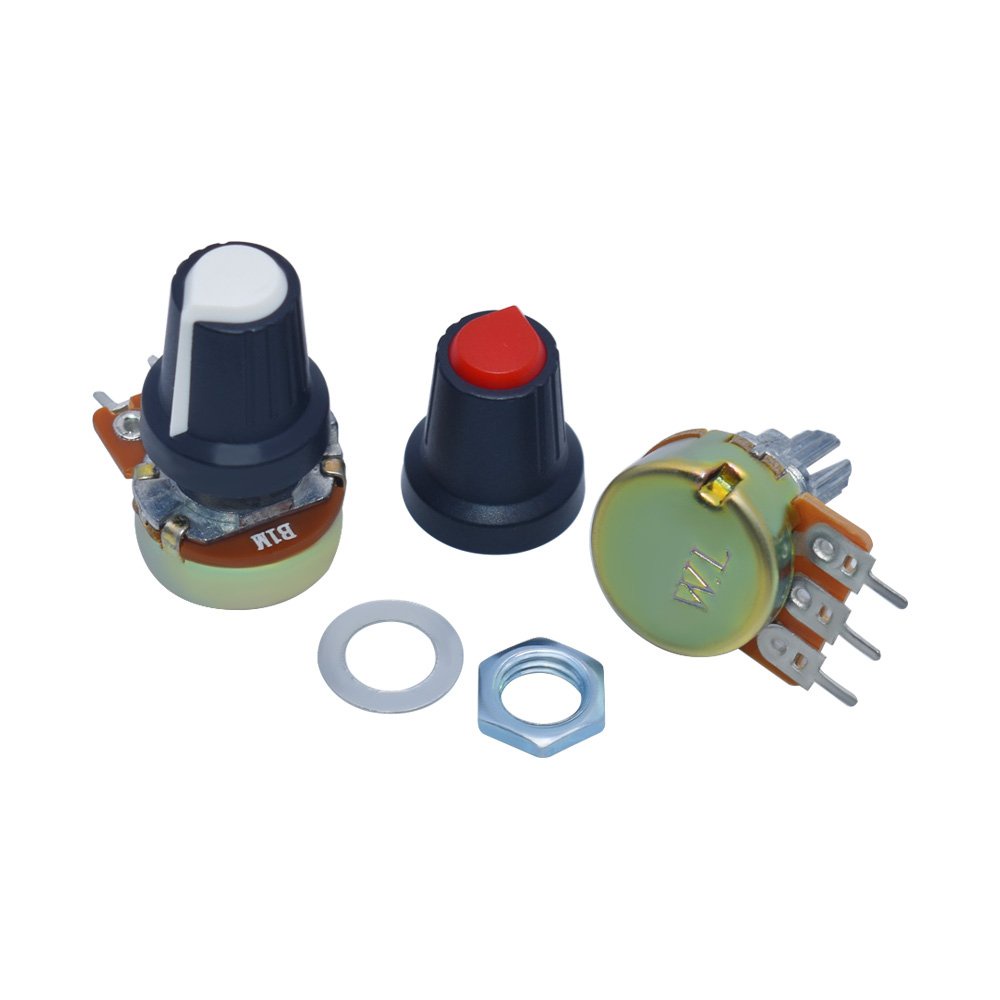

• Matching knob caps, mounting nut and washer included for a finished panel fit

• 3-pin solder terminals with standard spacing

• Metal shaft and smooth, reliable wiper track
• Marked resistance value on each body for quick identification

🔧 Specifications

• Series: WH148
• Taper: B (linear)
• Values: 1K, 2K, 5K, 10K, 20K, 50K, 100K, 250K, 500K, 1M ohm
• Shaft length: 15 mm
• Terminals: 3 pins
• Mounting: threaded bush with nut and washer
• Rotation: approx. 300° single turn
• Power rating: approx. 0.5 W
• Tolerance: approx. ±20%

💡 Perfect for

• Volume, tone and gain controls
• Arduino analog input and adjustable thresholds
• Dimming, speed and position controls
• DIY amplifiers, pedals, panels and synth builds
• Educational electronics and calibration projects
