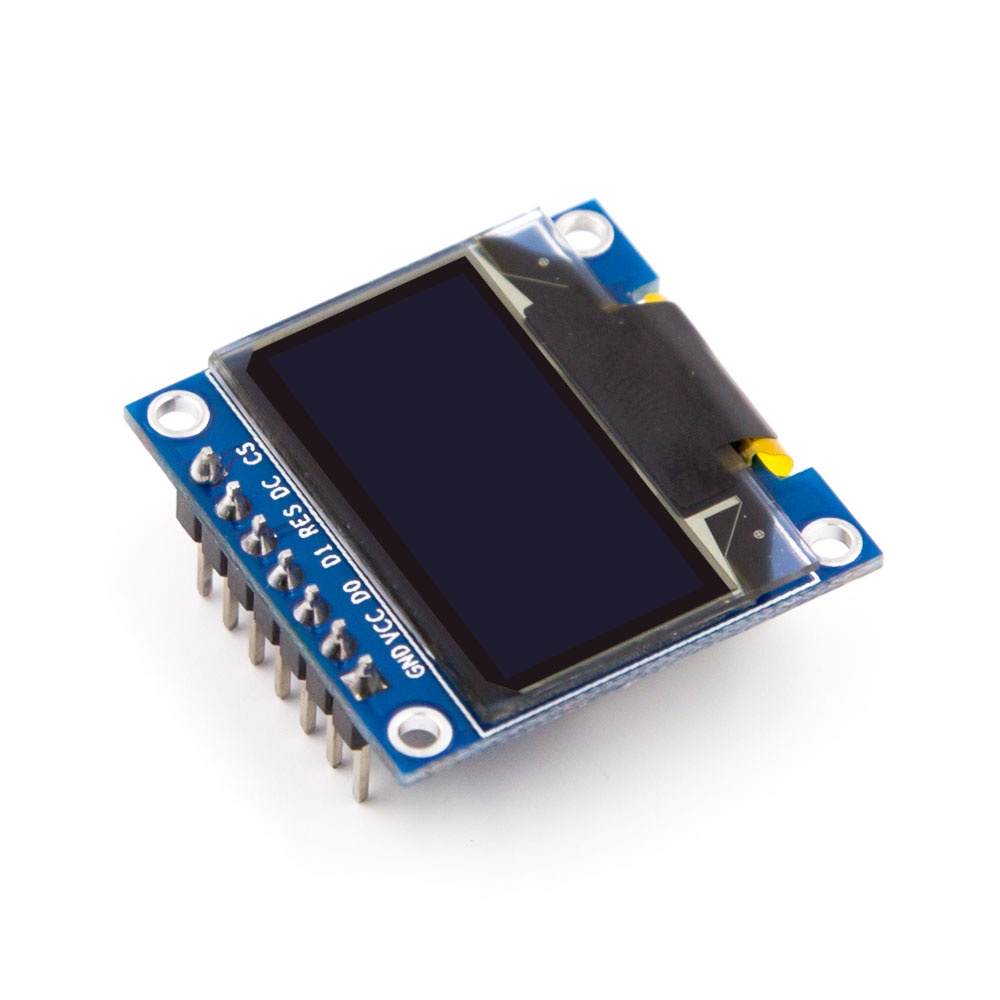

This 0.96" OLED Display Module is a compact, high-contrast screen perfect for adding a sleek user interface to your electronics projects. Unlike standard LCDs, OLED technology doesn't require a backlight, resulting in deep blacks and vivid colors. 🌟
🖥️ Display Performance
- Resolution: Crisp 128 x 64 pixels on a 0.96-inch screen.
- Technology: Self-illuminating OLED (Organic Light-Emitting Diode) for high visibility in dark or bright environments.
- Color Options: Available in Blue, White, or Yellow/Blue dual-color variants.
- Wide Viewing Angle: Provides a clear picture from almost any angle (greater than 160°). 👁️
⚙️ Technical Specifications
- Driver IC: Powered by the industry-standard SSD1306 controller.
- Operating Voltage: Supports 3.3V to 5.0V (compatible with Arduino, ESP32, STM32, and 51 series MCUs). ⚡
- Temperature Range: Heavy-duty performance from -40°C to 85°C. ❄️🔥
- Weight: Ultra-lightweight design at only 5g.

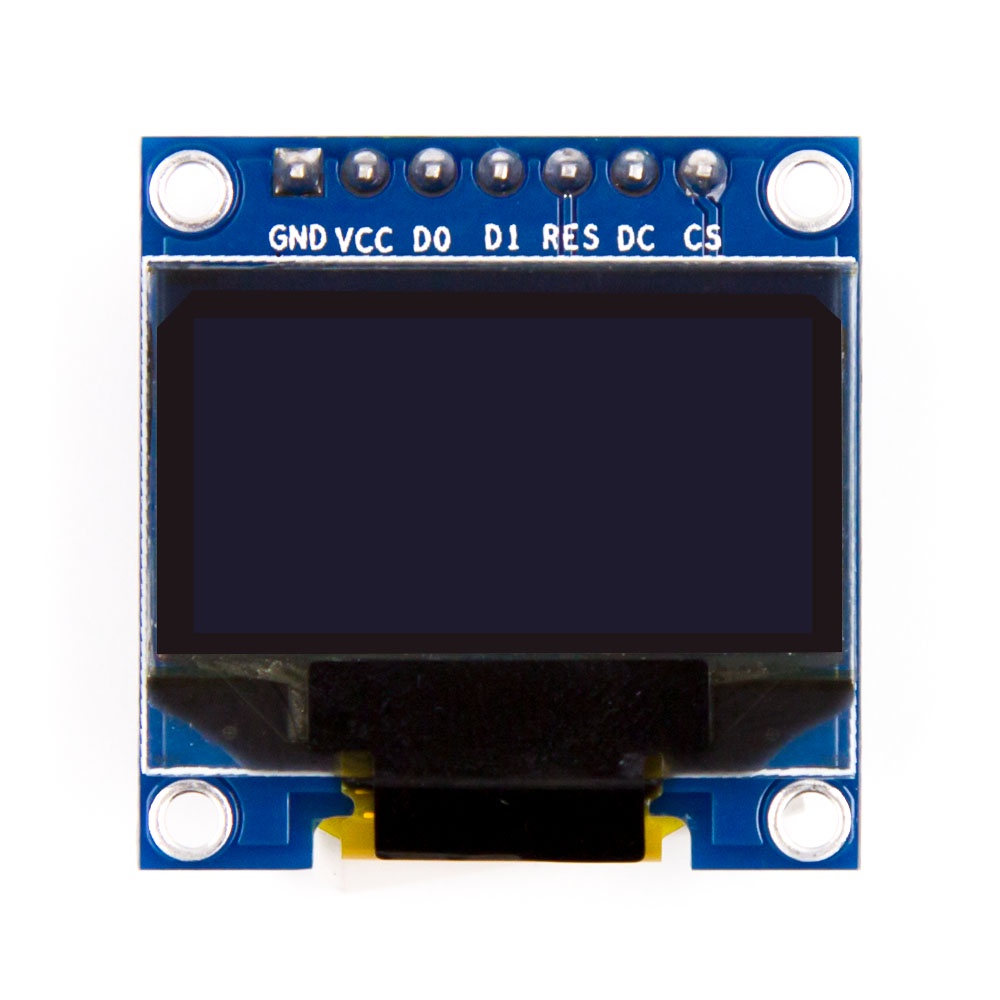

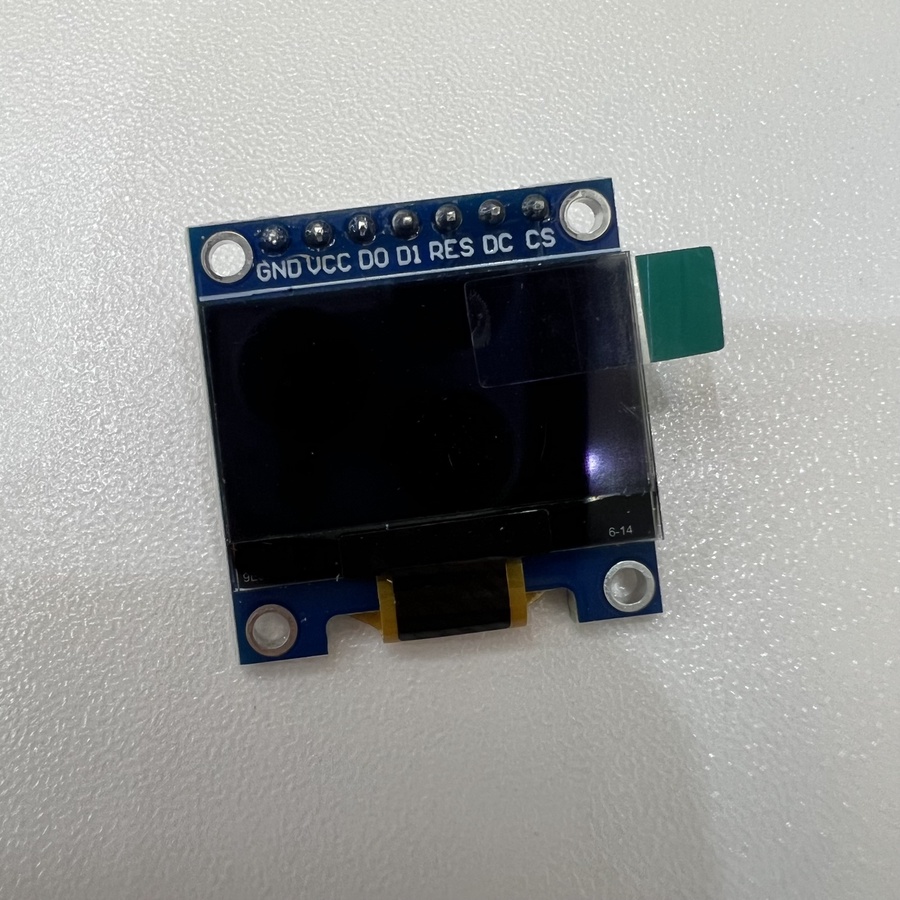

🔌 SPI Interface Definition (7-Pin)
Using the high-speed SPI protocol allows for smooth animations and fast refresh rates:
- GND: Power Ground.
- VCC: Power Supply (3.3V - 5V).
- D0 (SCL): Serial Clock Line.
- D1 (SDA): Serial Data Line.
- RES: Reset Pin.
- DC: Data/Command Selection.
- CS: Chip Select (Connect to ground if not in use). 🔗
🚀 Example Library
For most users, the Adafruit SSD1306 library combined with Adafruit GFX is the easiest way to get started. 📚
GitHub Reference: https://github.com/adafruit/Adafruit_SSD1306GitHub Reference: https://github.com/AnasKhedr/0.96-inch-oled-demo-using-rp2040-zero
💡 Shop Note
"Hi there! This OLED is the perfect upgrade for your next project if you want a professional, modern look. It's incredibly thin and light because it doesn't need a bulky backlight. Please double-check your wiring—this is the 7-pin SPI version, which is much faster than the 4-pin I2C versions, making it great for displaying small animations or real-time graphs!"
