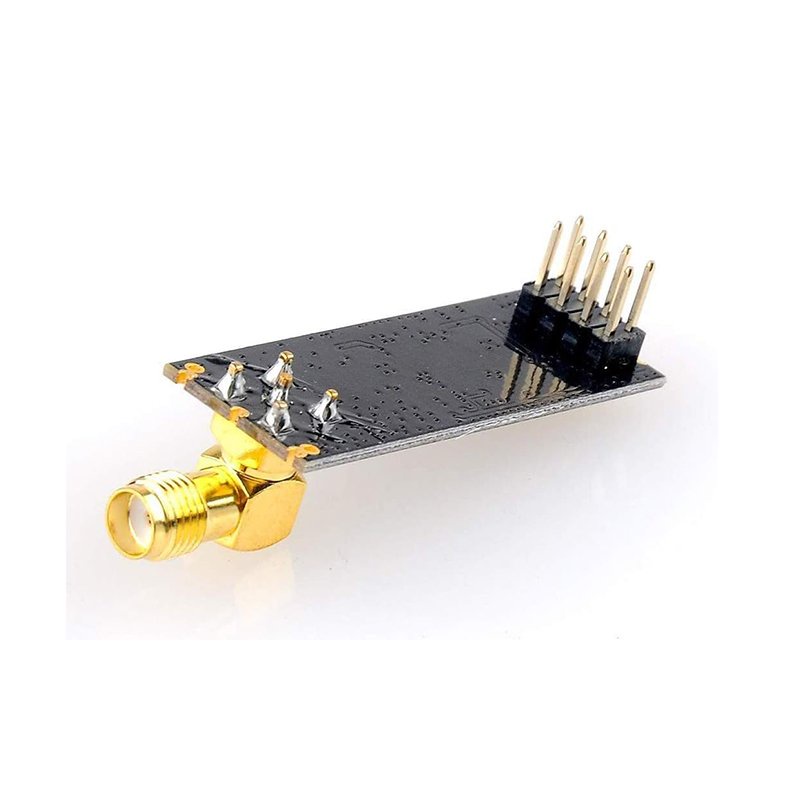

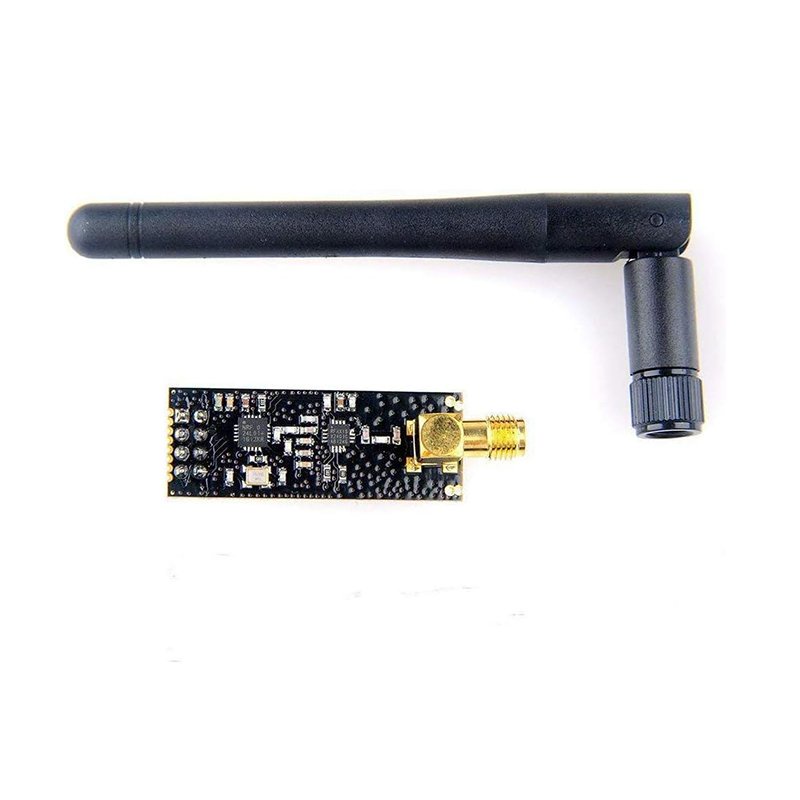

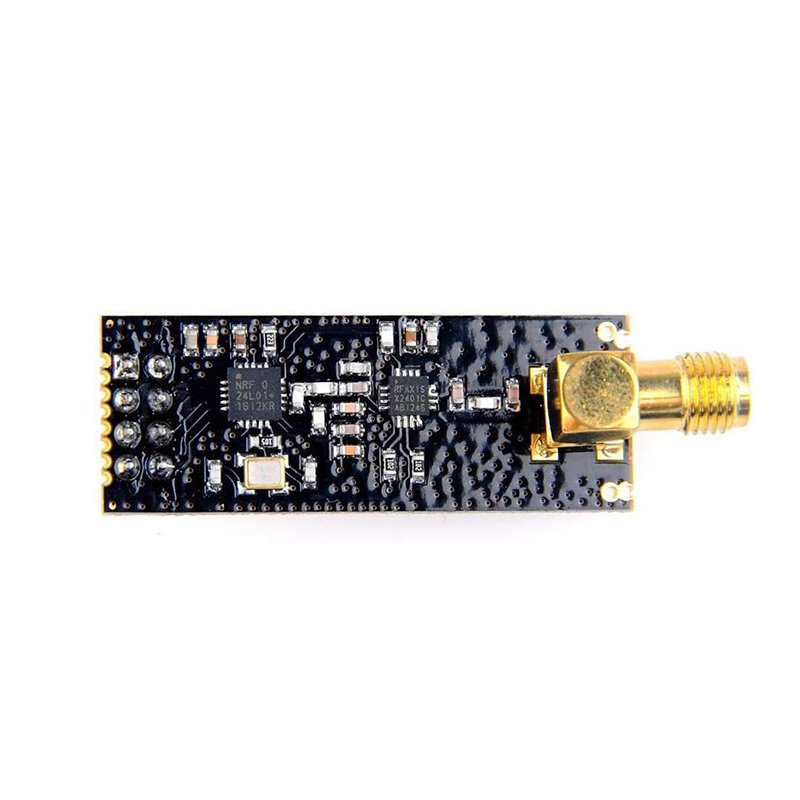

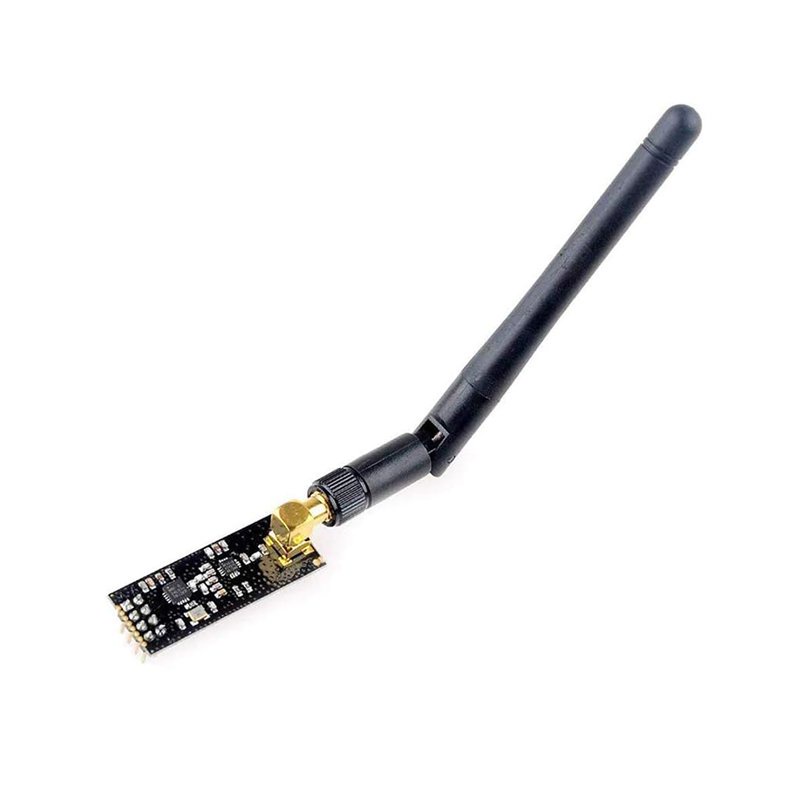

NRF24L01+PA+LNA 2.4GHz Transceiver + Antenna (1000m)

📡 NRF24L01+PA+LNA 2.4 GHz Wireless Transceiver with Antenna

A long-range 2.4 GHz transceiver module with a power amplifier and low-noise amplifier, paired with an external antenna. It gives your Arduino, ESP32 or other MCU reliable two-way wireless links far beyond the range of a bare NRF24L01.

✨ Key Features

• nRF24L01+ with PA (power amplifier) and LNA (low-noise amplifier)

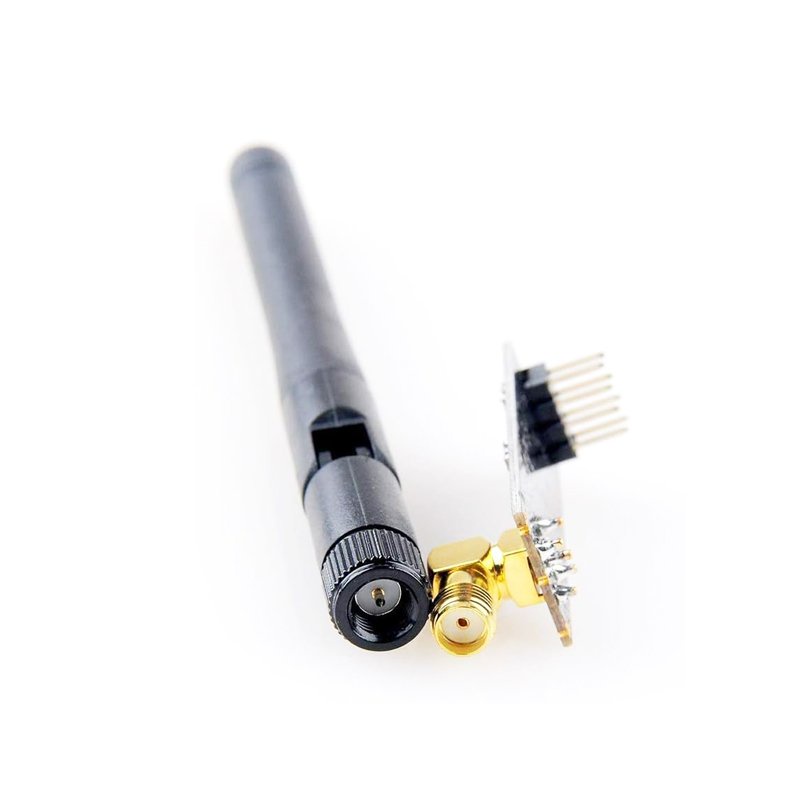

• SMA connector and external antenna for extended range
• Up to 1100 m line-of-sight in open-field conditions

• 2.4 GHz ISM band with 125 channels

• Data rates: 250 kbps, 1 Mbps and 2 Mbps
• SPI interface — works with the standard RF24 library
• On-board decoupling and ground plane for stable RF performance

🔧 Specifications

• Chip: nRF24L01+
• Frequency: 2.4–2.5 GHz ISM band
• Modulation: GFSK
• Channels: 125
• Data rate: 250 kbps / 1 Mbps / 2 Mbps
• Range: up to ~1100 m open field with antenna and line of sight
• Interface: SPI
• Supply: 3.3 V — do not apply 5 V to the module
• Current: high peak current during transmit, so use a solid 3.3 V supply
• Antenna: external, SMA connector

💡 Perfect for

• Long-range remote controls and telemetry

• Wireless sensor networks and home automation

• RC models, drones and robot links

• Point-to-point and multi-node data links

• Battery-powered remote sensors with a stable 3.3 V rail
