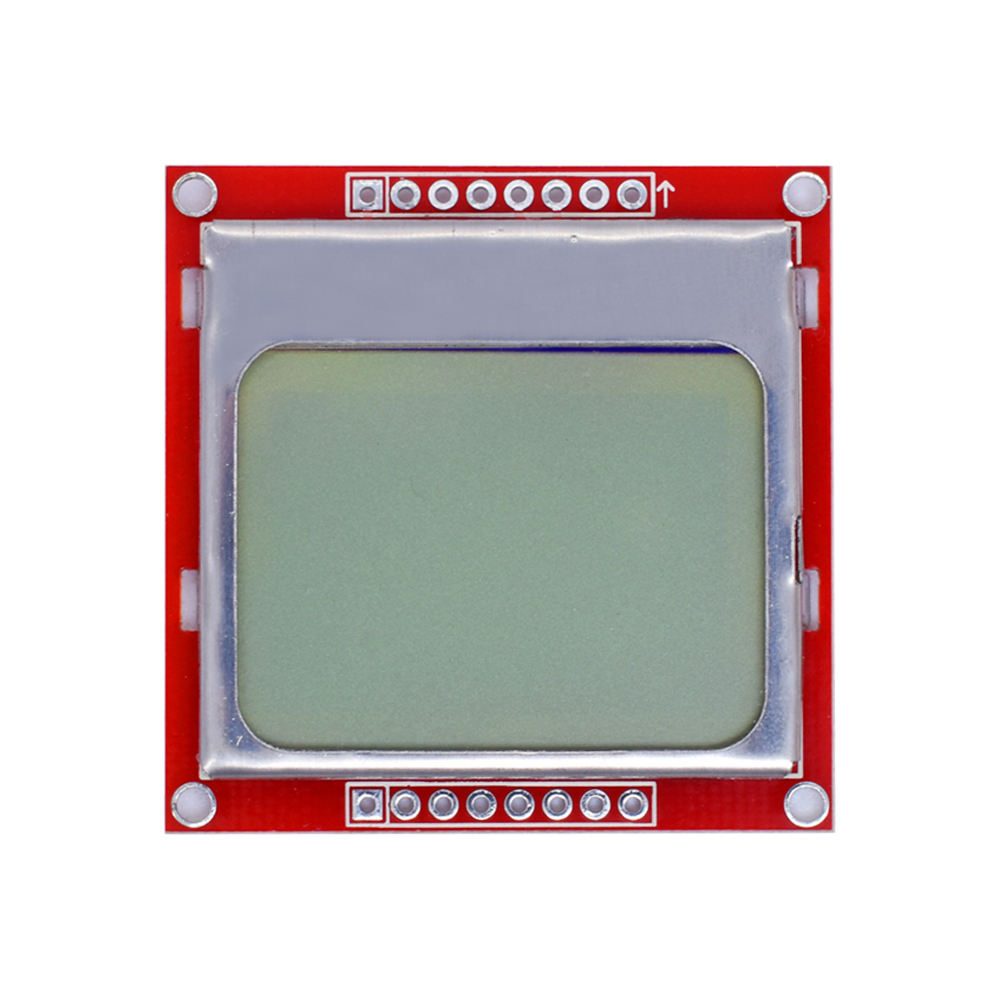

📟 Nokia 5110 LCD Module – 84x48 Monochrome Display with White Backlight
The display everyone remembers, repackaged on a handy breakout board. 84 x 48 pixels of crisp monochrome, a bright white LED backlight and a 5-pin SPI header make it one of the cheapest and easiest graphical displays to add to a microcontroller.
✨ Key Features
- 84 x 48 pixel monochrome LCD (PCD8544 controller)
- White LED backlight for excellent contrast day or night

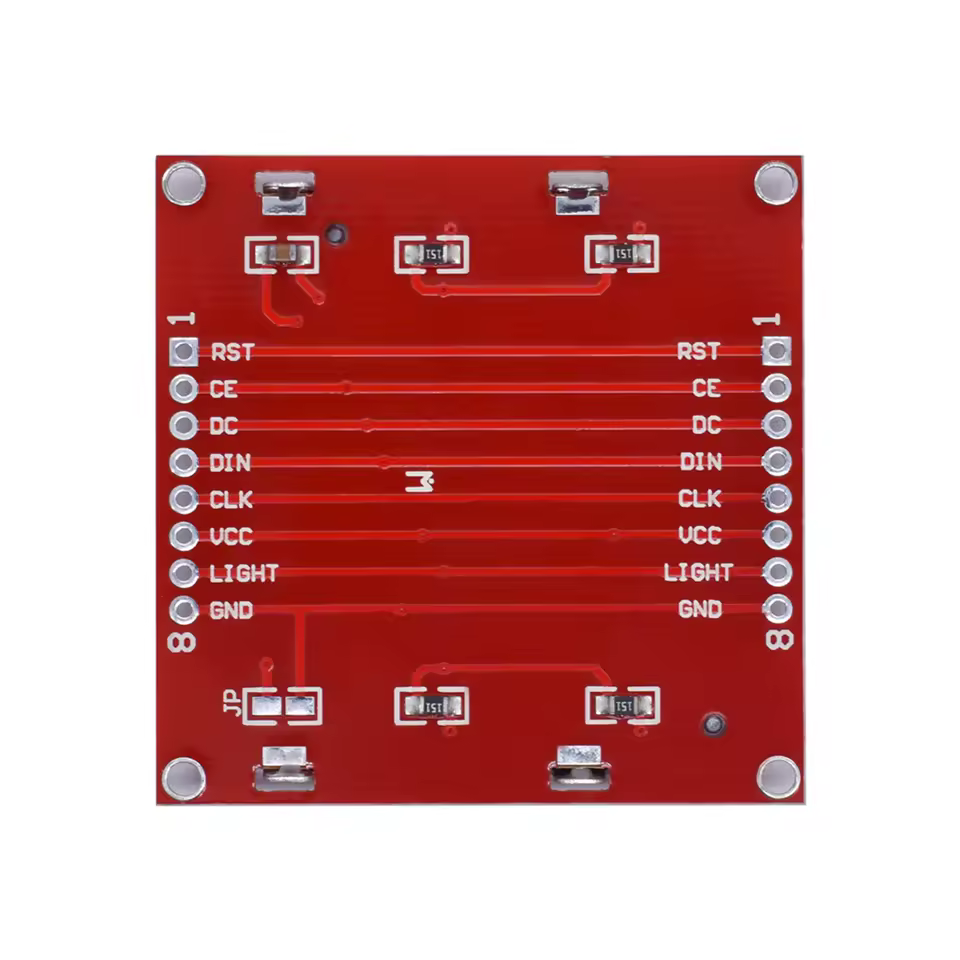

- Simple 5-wire SPI interface: RST, CE/CS, DC, DIN, CLK (plus VCC, GND, BL)
- On-board level shifting so both 3.3V and 5V logic work
- Low current draw – ideal for battery-powered projects

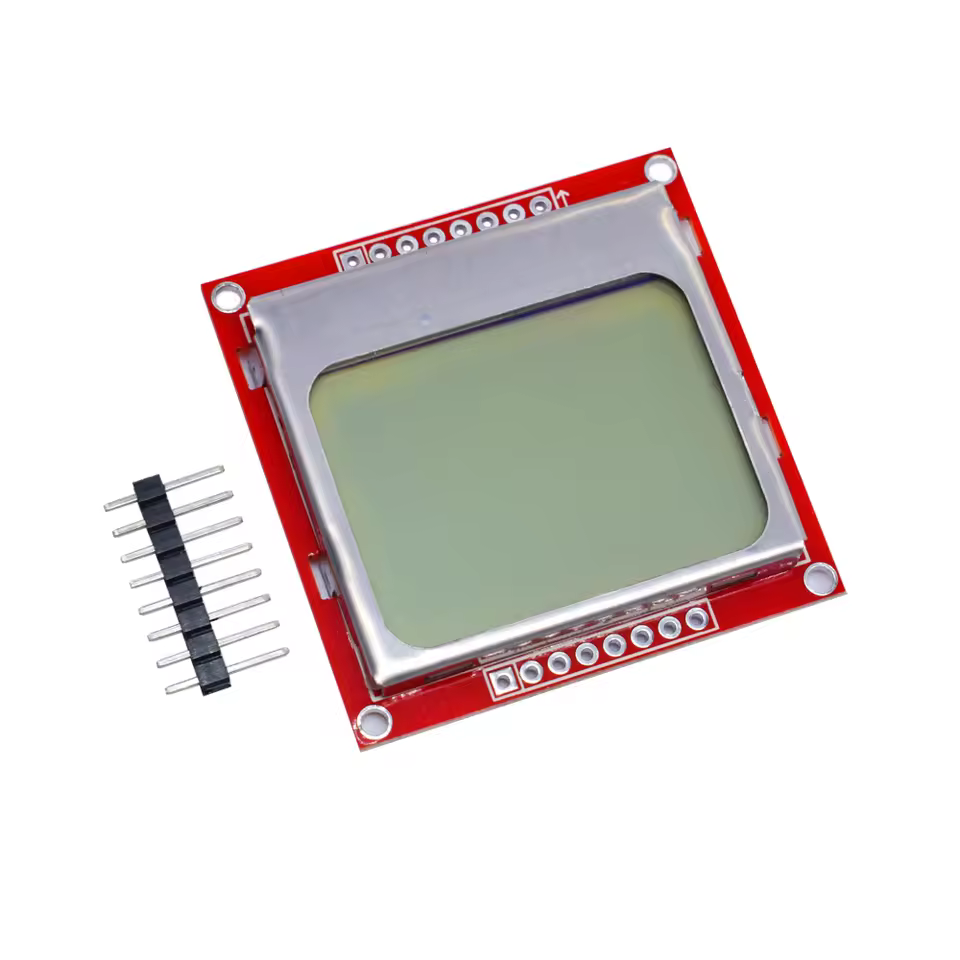

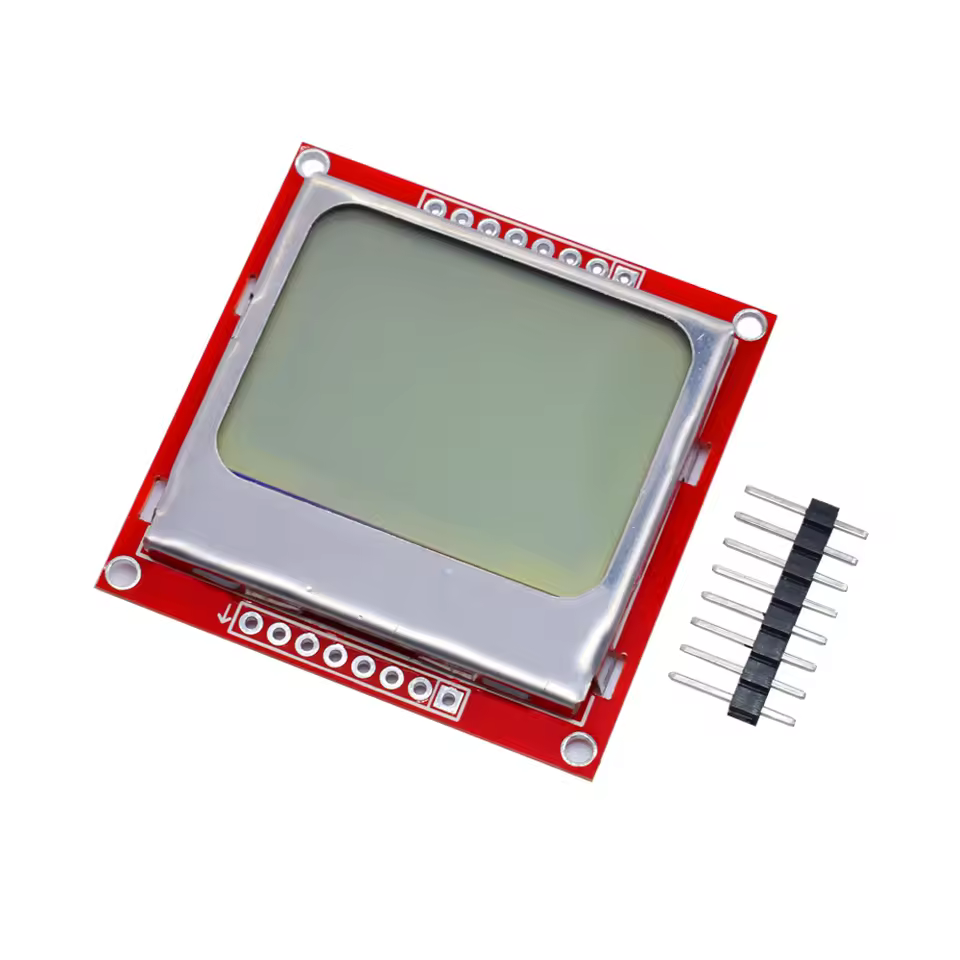

- Pre-soldered header, ready to plug into a breadboard
🔬 Specifications
- Controller: PCD8544
- Resolution: 84 x 48 pixels
- Interface: SPI
- Supply: 3.3V (5V tolerant IO on this board)
- Backlight: white LED
- Viewing area: approx. 43 x 27mm
- Board size: approx. 45 x 45mm
💡 Perfect For
Compact sensor readouts, handheld game clones, menu-driven device UIs, weather stations, and any project that needs more than a 16x2 text display but has very little space or power budget.
