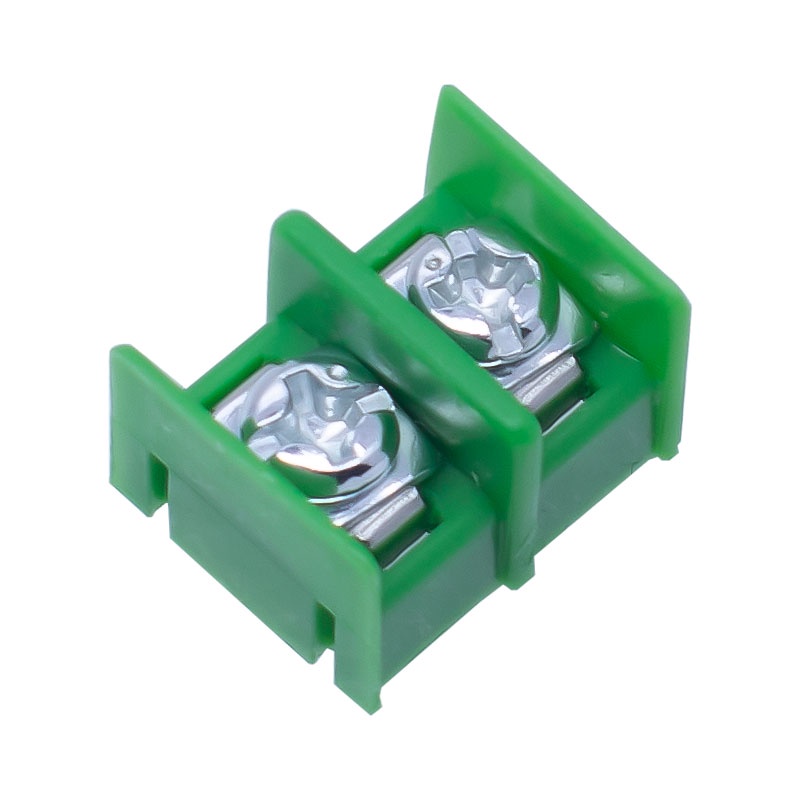

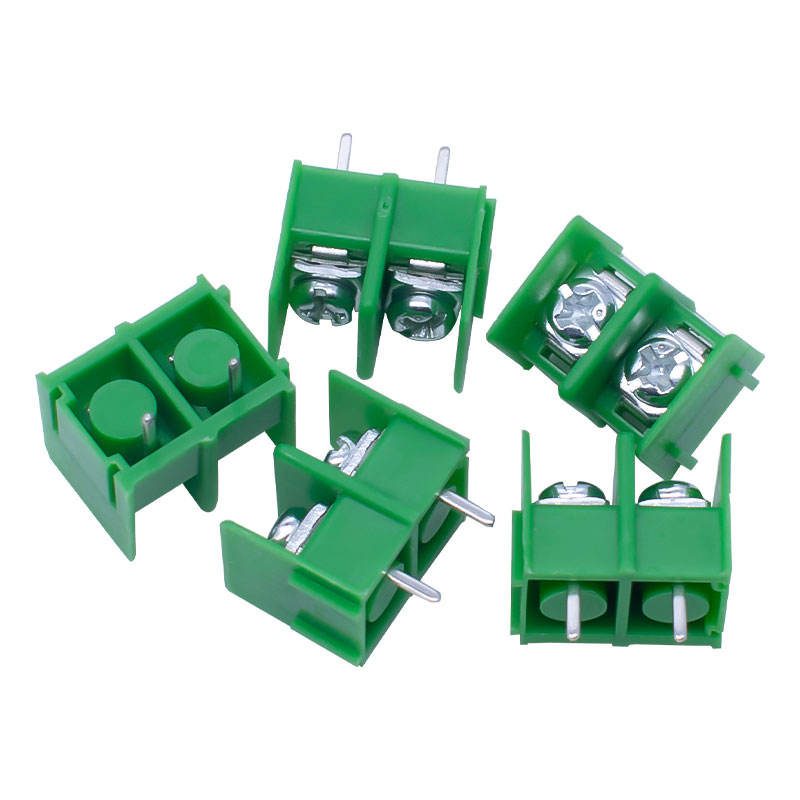

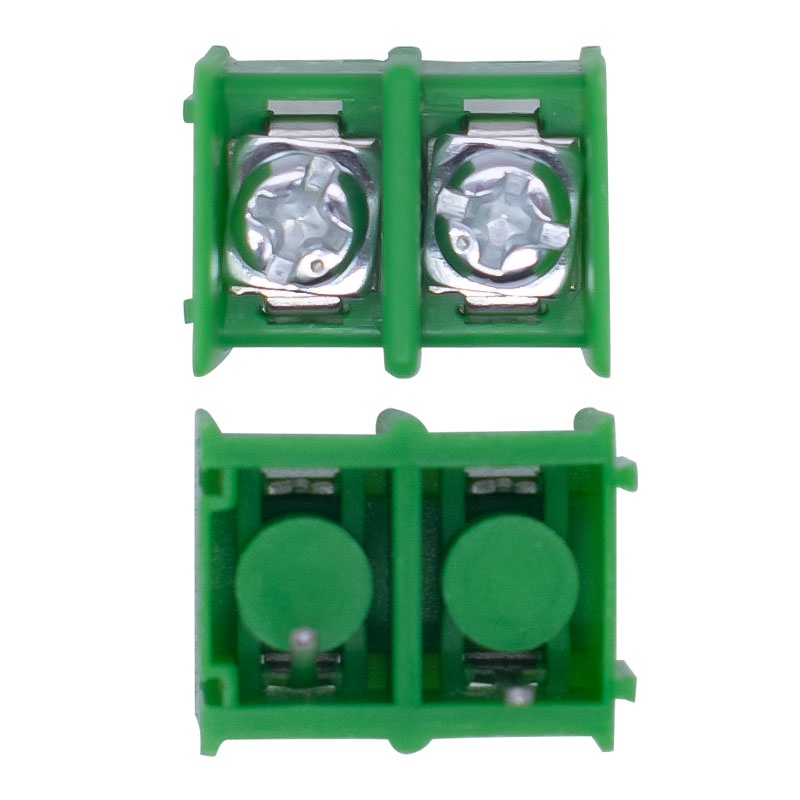

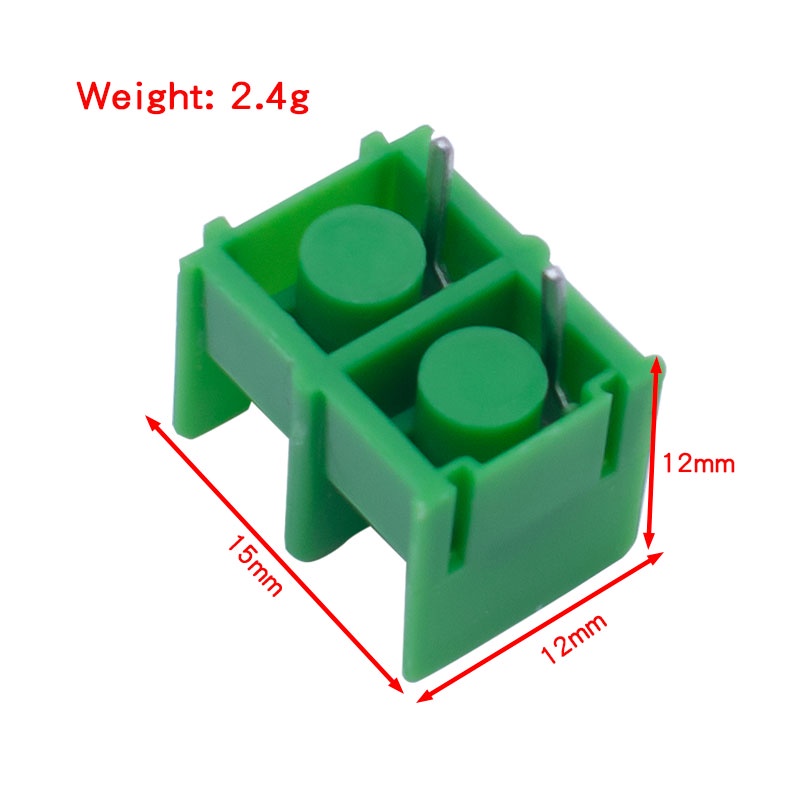

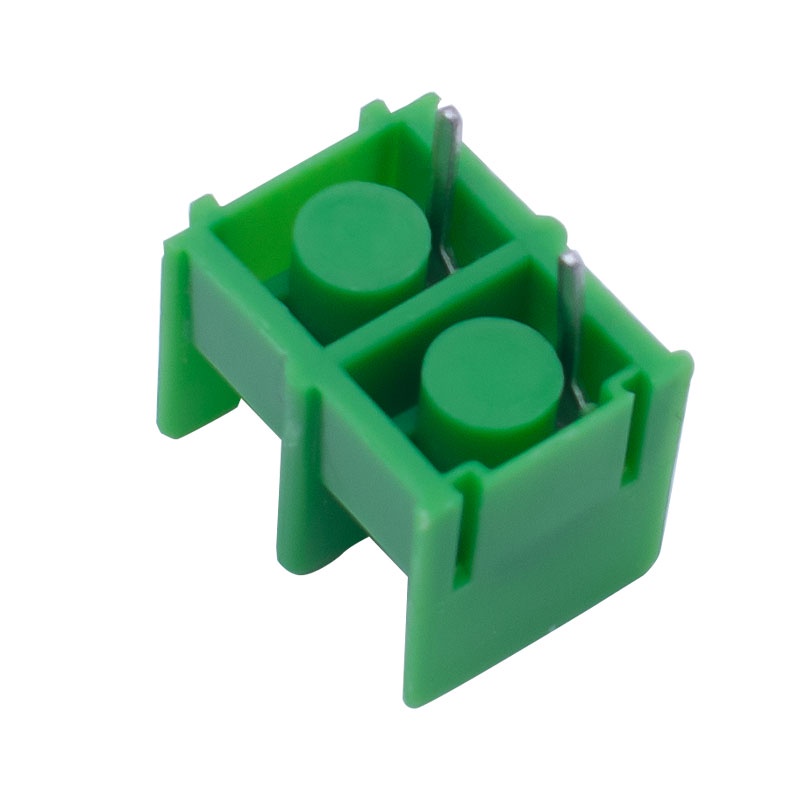

🔧 KF7.62-2P Screw Terminal Block – 7.62mm Pitch, 2-Pin, Green
A screw-down terminal block for permanent or semi-permanent wire connections on a PCB. The generous 7.62mm pitch leaves room to work with a screwdriver and accepts thick mains-rated wire, which is why this style is the usual choice for power entry.
✨ Key Features
- 2 poles, 7.62mm pin pitch – comfortable spacing for hand wiring
- Rising-cage clamp grips stranded or solid wire without cutting strands
- Screw terminals accept wire up to roughly 2.5mm² (14AWG)
- Green flame-retardant PBT housing with tin-plated brass pins
- Interlocking side profile so blocks can be butted together into longer strips
- Through-hole mounting, 2 pins per block
🔬 Specifications
- Model: KF7.62-2P
- Positions: 2
- Pitch: 7.62mm
- Rated voltage: 300V
- Rated current: 15A (per pole, typical)
- Wire range: 0.5 – 2.5mm² (14-22AWG)
- Contact: brass, tin-plated
- Housing: green PBT, UL94V-0
💡 Perfect For
Power inputs on power supplies, LED drivers, motor controllers, relay boards, mains-side wiring in enclosed projects, and any board where wires must be connected and reconnected safely.
