ESP32-C6-WROOM-1 N4 DevKit — Wi-Fi 6 / BLE 5.3 / Zigbee

🚀 ESP32-C6 WROOM-1 N4 Development Board — Wi-Fi 6, Bluetooth 5.3, Zigbee/Thread

A modern ESP32-C6 dev board that brings Wi-Fi 6, Bluetooth 5.3 LE and IEEE 802.15.4 (Zigbee/Thread) to one compact, USB-C powered board. With a 160 MHz RISC-V core, 4 MB flash and Matter-ready networking, it is a great base for connected home and IoT projects.

✨ Key Features

• 32-bit RISC-V processor up to 160 MHz

• Wi-Fi 6 (802.11ax) for efficient wireless in crowded networks

• Bluetooth 5.3 LE and Bluetooth Mesh

• IEEE 802.15.4 radio for Zigbee and Thread — Matter-ready

• 4 MB SPI flash (N4 variant)

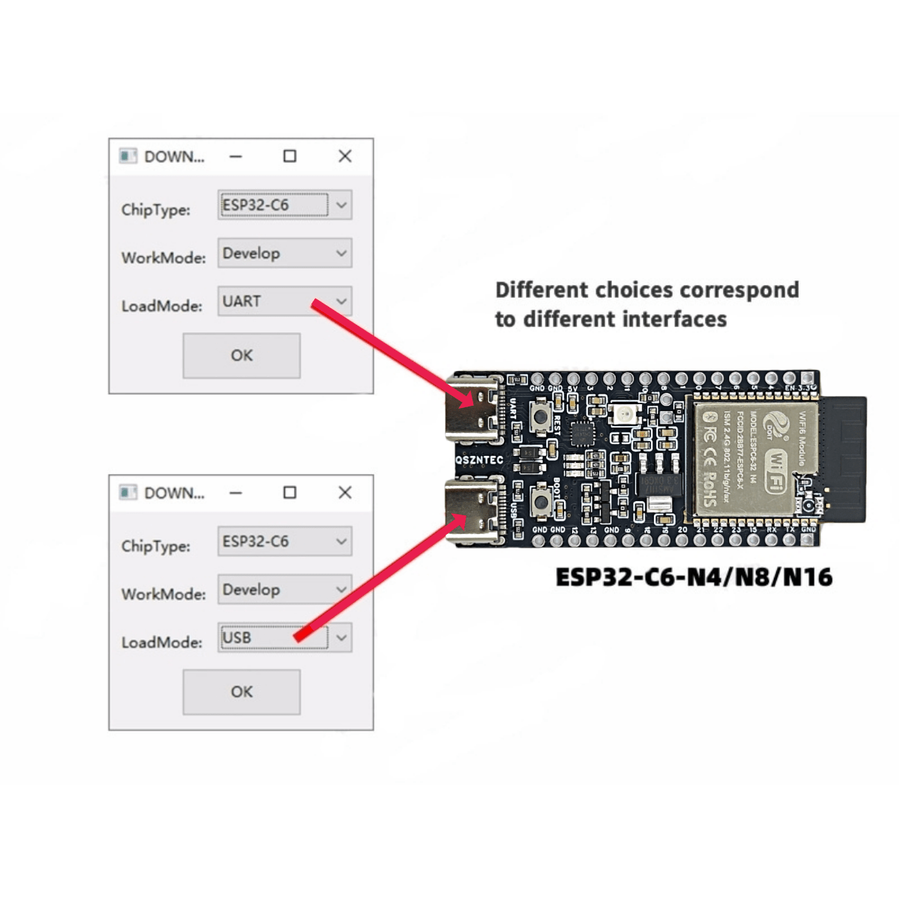

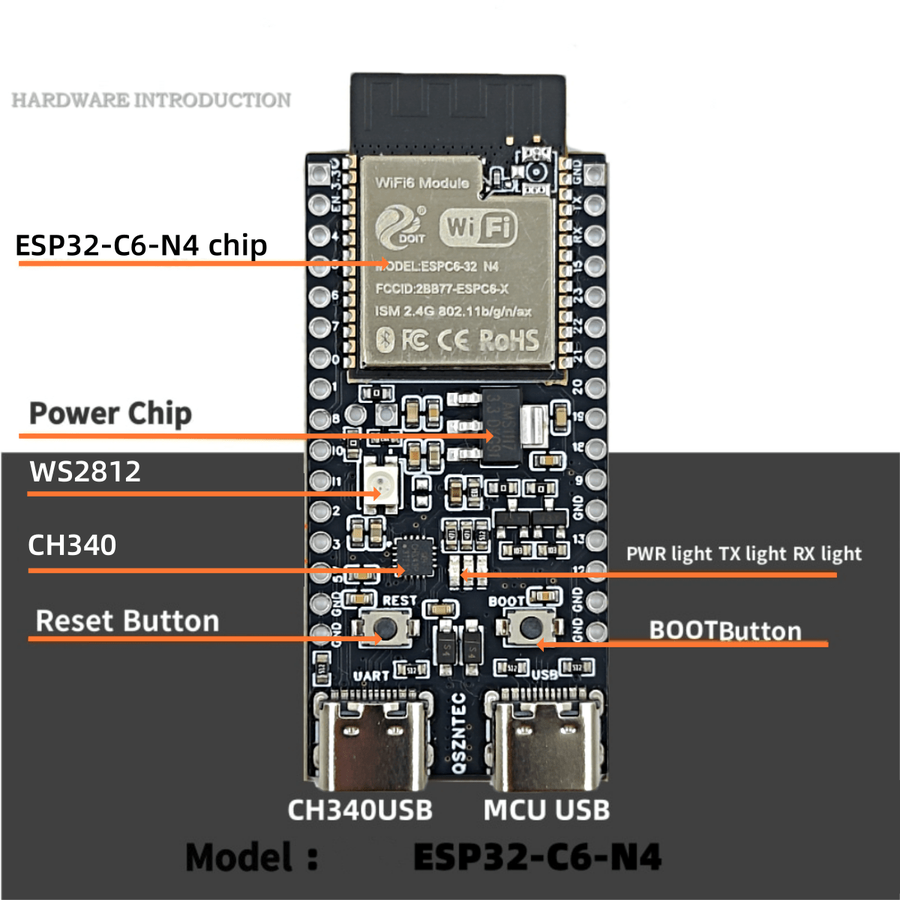

• Dual USB-C ports — one for UART/programming and one for native USB Serial/JTAG

• On-board PCB antenna and boot/reset buttons

• Header pins for GPIO, ADC, I²C, SPI, UART and PWM

🔧 Specifications

• Module: ESP32-C6-WROOM-1-N4
• Core: 32-bit RISC-V, up to 160 MHz
• Memory: 4 MB flash, 512 KB SRAM
• Wireless: Wi-Fi 6 2.4 GHz, Bluetooth 5.3 LE, 802.15.4
• USB: two USB-C ports (UART bridge + native USB Serial/JTAG)

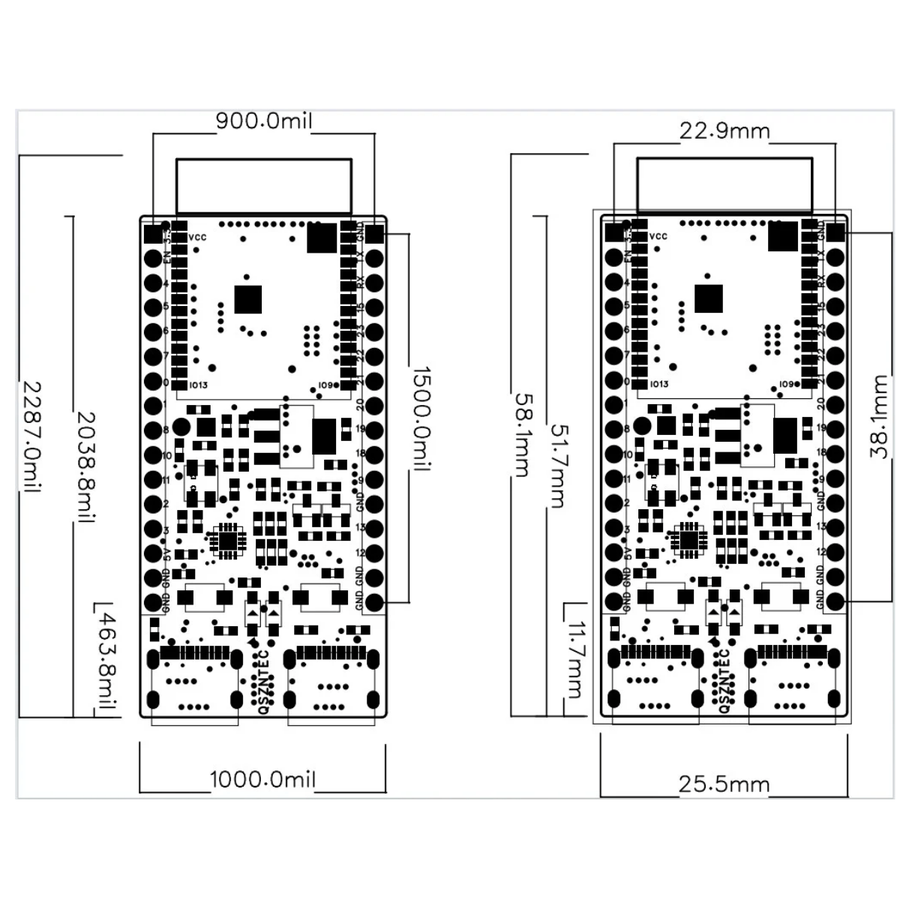

• GPIO: 2.54 mm pitch headers
• Power: 5 V via USB-C, 3.3 V logic
• Antenna: on-board PCB antenna

💡 Perfect for

• Matter / smart-home devices and Thread nodes

• Wi-Fi 6 sensor nodes and IoT gateways

• Zigbee coordinator and end-device projects

• Learning RISC-V embedded development

• Battery-friendly connected sensors and controllers
