CH9329 UART/TTL Serial Port to USB HID Keyboard Mouse Module

⌨️ CH9329 USB HID Keyboard & Mouse Converter — UART/TTL to USB

The CH9329 module lets any microcontroller, PLC or serial console act as a real USB keyboard and mouse. Send simple UART commands and the chip presents a standard USB HID device to the host — no custom drivers and no USB stack to write.

✨ Key Features

• WCH CH9329 USB HID controller — recognised by Windows, Linux, macOS and Android as a plug-and-play keyboard/mouse
• UART/TTL serial control with a documented command set: keyboard, relative mouse and absolute mouse
• Supports single keys, key combinations, text strings and multi-byte mouse reports

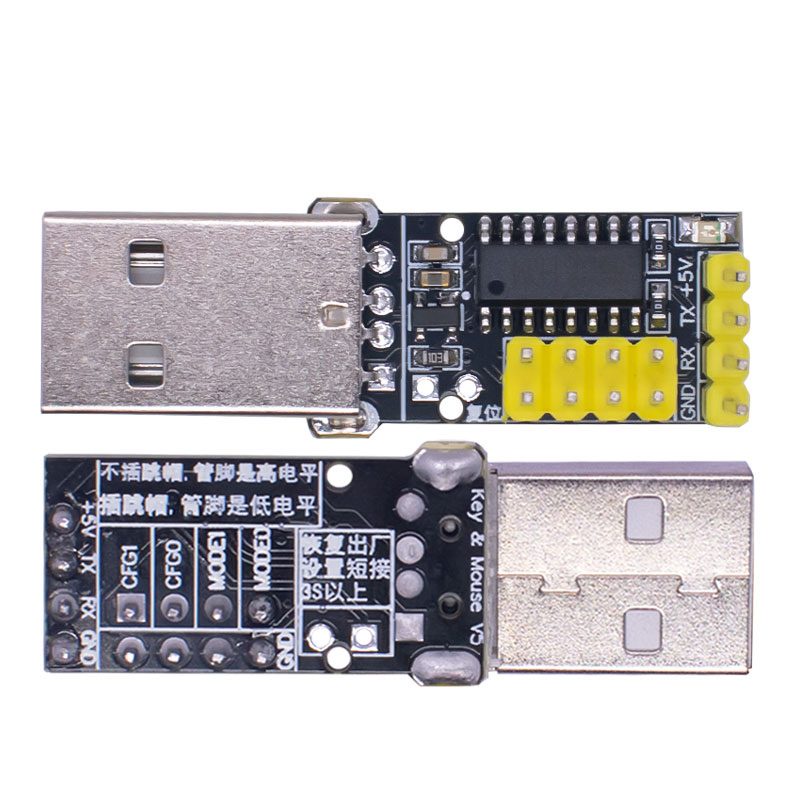

• On-board crystal and USB-A connector for a direct, stable USB link
• Selectable UART baud rate via configuration commands

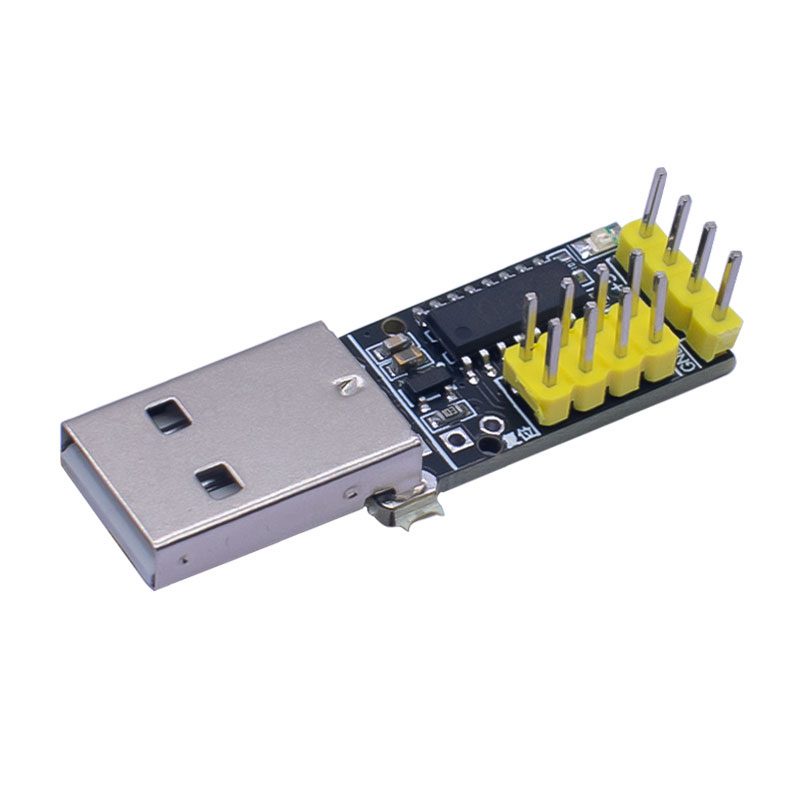

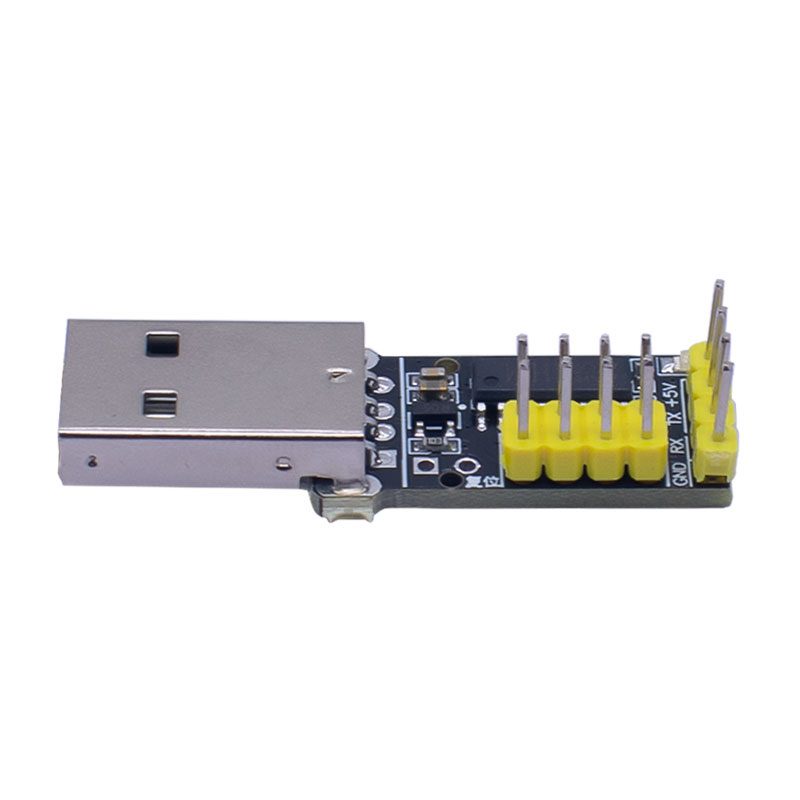

• Pin header for VCC, GND, TXD and RXD — easy to wire to any 3.3 V / 5 V MCU

🔧 Specifications

• Chip: CH9329
• Host interface: USB 2.0 full speed, HID class
• Control interface: UART/TTL (TX/RX), configurable baud rate
• Supported HID: keyboard, relative mouse, absolute mouse / digitizer
• Supply: 5 V via USB; serial side referenced to module ground
• On-board configuration storage for VID/PID and mode settings
• Compact board with solder header for breadboard or cable connection

💡 Perfect for

• KVM switches and remote keyboard/mouse injection
• Macro keypads, automation and test rigs
• Kiosk, touchscreen and scripted UI testing
• Turning a microcontroller into a plug-and-play USB input device
• Accessing a PC from a serial console or single-board computer
