TXS0108E 8-Channel Bi-Directional Logic Level Converter Module
Bi-Directional logic Level Converter 8 Channel
4.7
( 3 تقييم )
45ج.م
1
توصيل ذكي بين أنظمة مختلفة!
هل تواجه صعوبة في ربط الأنظمة التي تستخدم مستويات جهد مختلفة؟ لا داعي للقلق بعد الآن! مع وحدة تحويل الجهد TXS0108E 8-Channel، يمكنك الآن ربط المتحكمات الدقيقة (زي Arduino و ESP32) مع الحساسات والشاشات بسهولة.
المميزات:
- تحويل 8 إشارات منطقية في وقت واحد!
- توجيه تلقائي بدون الحاجة لبرمجة خارجية.
- مدى جهد واسع يتناسب مع جميع المتحكمات الحديثة.
الآن، يمكنك تحقيق تواصل سلس بين جميع أجهزة الكترونياتك.
🚦 TXS0108E 8-Channel Bi-Directional Logic Level Converter Module
The TXS0108E 8-Channel Logic Level Converter is a powerful, high-performance module designed to bridge the gap between systems using different logic voltage levels.1 Built around the advanced TXS0108E chip, this device offers eight independent, bi-directional channels, making it perfect for connecting complex bus systems or multiple peripherals between 2$3.3\text{V}$ and 3$5\text{V}$ logic.4
This module is an ideal solution for engineers and hobbyists needing to interface microcontrollers (like Arduino or ESP32) with various sensors, displays, and devices.
✨ Key Features and Performance
FeatureTechnical DetailAdvantage8 ChannelsConverts up to 8 logic signals simultaneously.Ideal for converting full 8-bit data buses or multiple interfaces (I2C, SPI, UART) at once.Automatic Bi-DirectionalFeatures internal logic for automatic direction control.No external programming or direction pins needed; simplifies integration and use.Wide Voltage RangeLow (A) side: $1.2\text{V}$ to $3.6\text{V}$; High (B) side: $1.65\text{V}$ to $5.5\text{V}$.Compatible with virtually all modern microcontroller logic levels.Application OptimizedOptimized for open-drain applications (like I2C) but supports standard CMOS push-pull translation.Versatile enough for both bus communication and general purpose I/O.Output Enable (OE)Dedicated pin for enabling/disabling outputs.Useful for low-power applications as it shuts off pull-up resistors, dropping idle current to a few $\mu\text{A}$.Power Sequencing SafeNot affected by power supply sequencing.No risk of damage if one side is powered before the other.
🔌 Module Connections and Operation
The module requires power input on both the low and high voltage sides, and the ground must be common to both systems.5

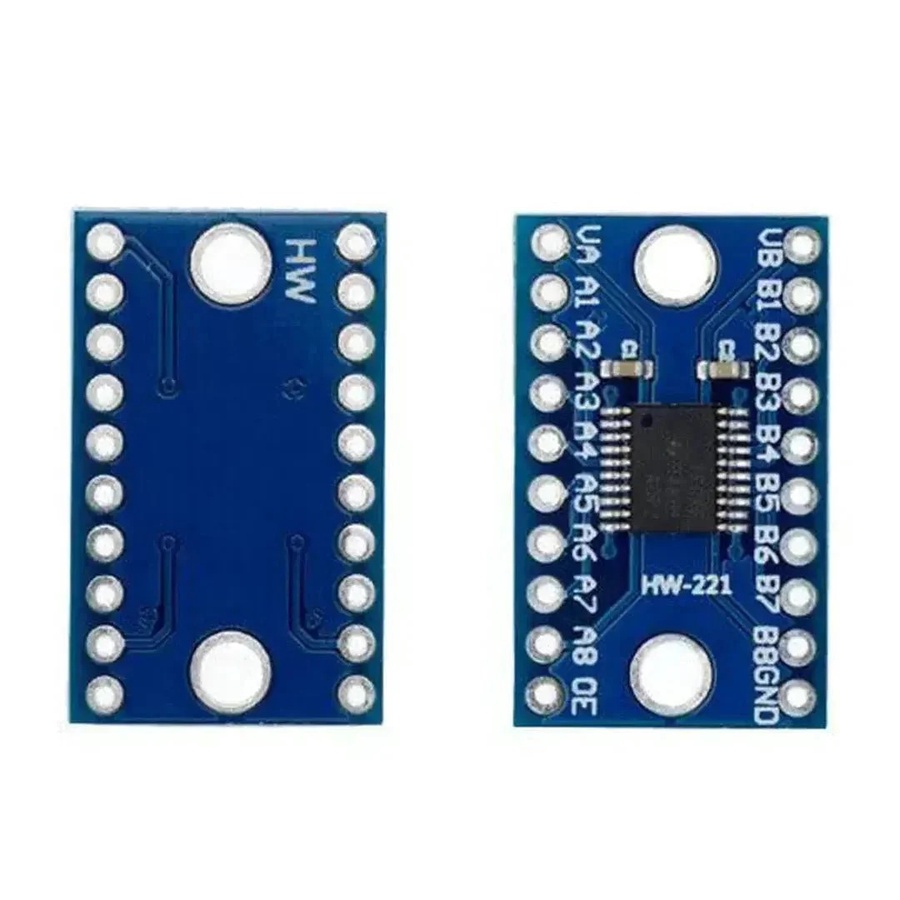

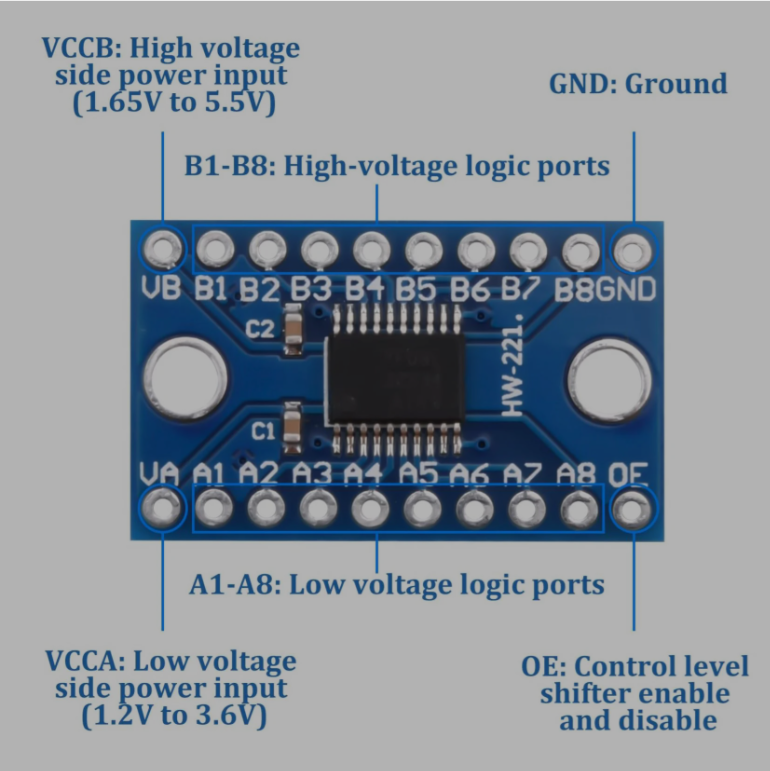

Pin NameDescriptionConnection NoteVALow Voltage Input (VCCA)Must be the lower voltage. Typically connected to $3.3\text{V}$.VBHigh Voltage Input (VCCB)Must be the higher voltage. Typically connected to $5\text{V}$.GNDGroundMust be common to both the low and high voltage systems.A1-A8Low Voltage I/O ChannelsConnect your $1.2\text{V}$ to $3.6\text{V}$ logic signals here.B1-B8High Voltage I/O ChannelsConnect your $1.65\text{V}$ to $5.5\text{V}$ logic signals here (A1 links to B1, etc.).OEOutput EnableActive HIGH. Connect to VA to enable always, or use a pull-down resistor to ground for MCU control.
🛠️ Assembly and Best Practices

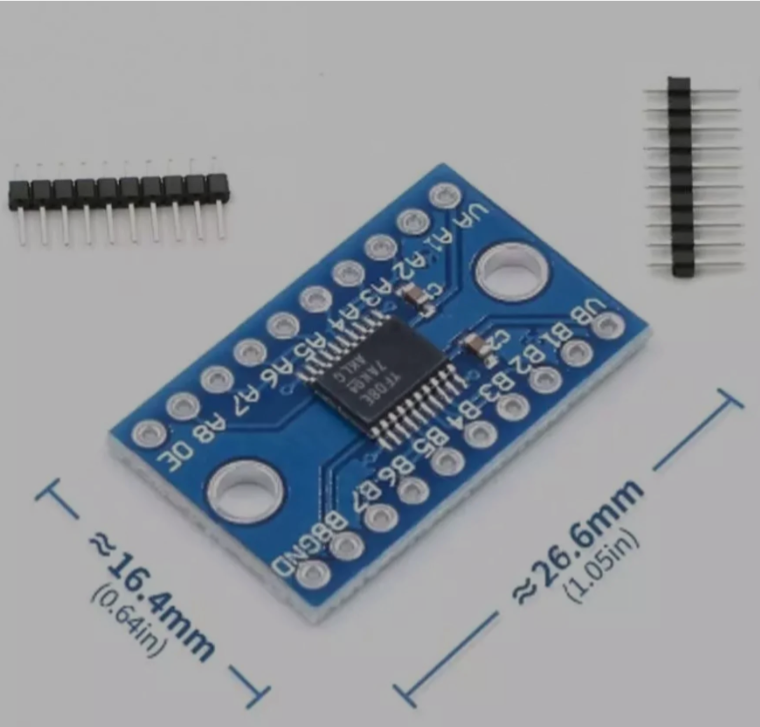

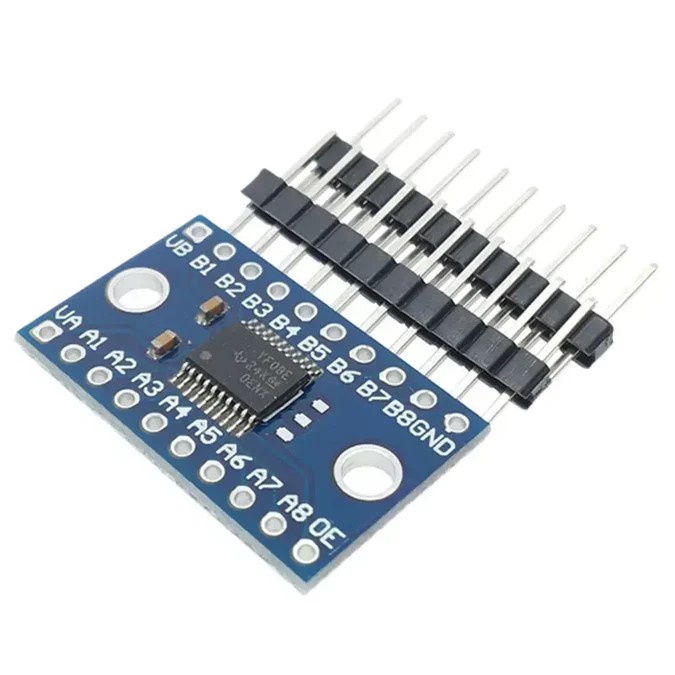

- Assembly: The module comes with two strips of 10-pin male headers.6 For best alignment, insert the headers into a breadboard first, then place the module on top and solder the pins.
- Optimal Use: The auto-direction sensing is ideal for dedicated bus systems (like I2C and SPI).
- Caution: Due to the auto-sensing logic, this module is not recommended for randomly switching GPIO pins or circuits with strong external pull-up resistors, as this can confuse the automatic direction switching.
