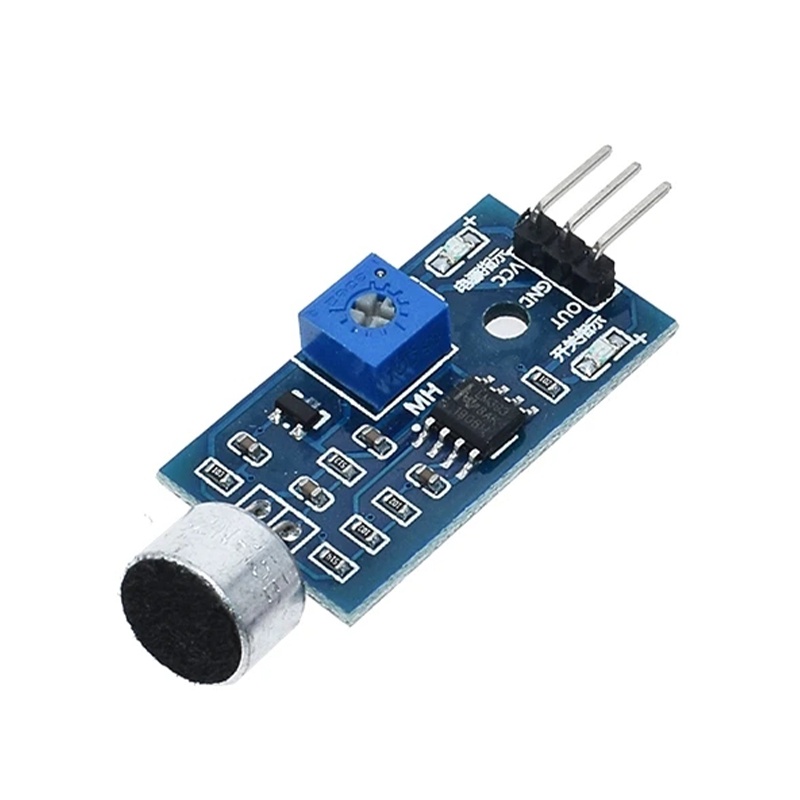

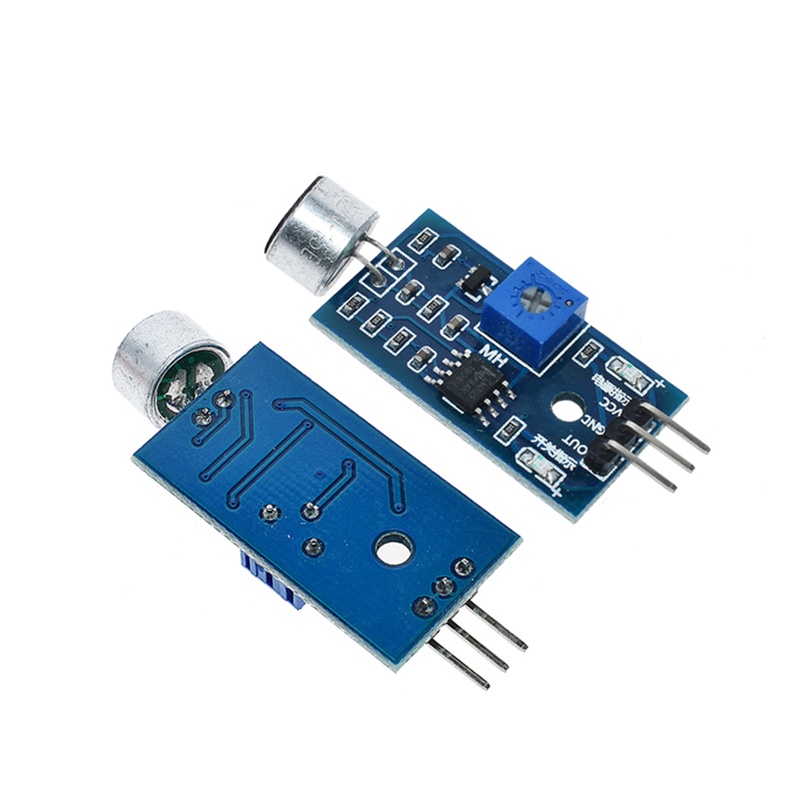

The WAVGAT Sound Detection Sensor Module is a highly sensitive acoustic trigger designed to detect the presence of sound in the surrounding environment. It’s a perfect entry-level component for creating voice-activated projects or noise-monitoring systems. 🎤

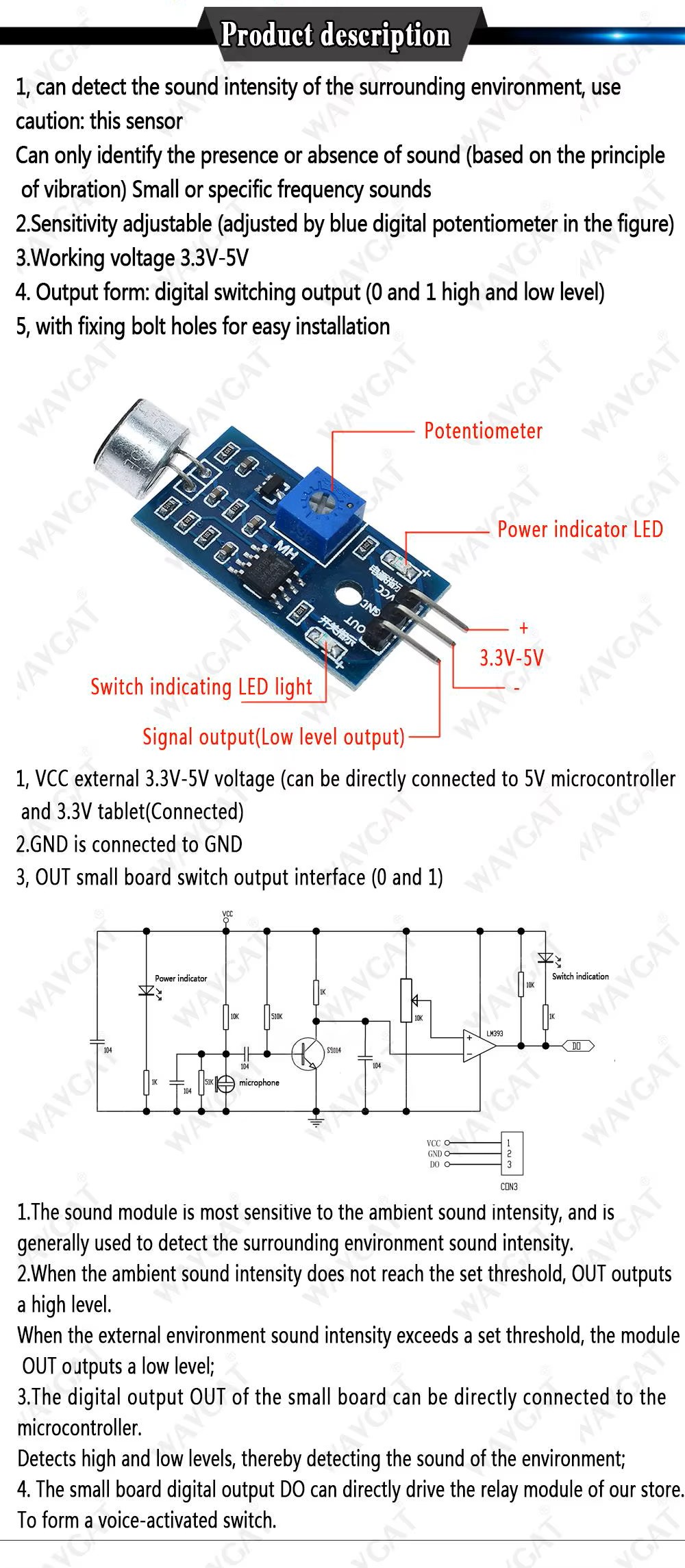

🔹 Core Functionality This module uses a microphone and an onboard comparator to identify sound based on vibration principles. It is most sensitive to the overall intensity of ambient noise, allowing it to act as an "acoustic switch." 🔊
🔹 Detection & Sensitivity
- Adjustable Threshold: Features a small blue digital potentiometer (trimmer) that lets you manually set the sound level required to trigger the output. 🛠️
- Dual LED Indicators: Includes a Power LED to confirm the module is on and a Switch Indicator LED that lights up the moment sound is detected. 💡
- Limitations: Note that this specific sensor identifies the presence of sound rather than specific frequencies or complex voice patterns. ⚠️
🔹 Technical Specifications
- Operating Voltage: 3.3V to 5V DC (Fully compatible with Arduino, ESP32, and tablets). ⚡
- Output Format: Digital switching output (0 and 1).
- HIGH (1): Ambient sound is below the set threshold.
- LOW (0): Sound intensity exceeds the set threshold. 📉
- Ease of Use: Can directly drive a relay module or connect to a microcontroller I/O pin. 🔗
- Mounting: Equipped with a fixing bolt hole for secure installation in permanent housings. 🔩
🔹 Applications
- Sound-Activated Lighting: Clap your hands to turn on a lamp. 👏
- Security Alarms: Detect loud bangs or glass breaking. 🚨
- Audio Visualizers: Use it with speakers or video systems to trigger visual effects. 📺
💡 Shop Note
If you're looking for a simple way to make your project react to noise, this is the module for you. It's great for 'clap-on' switches or detecting loud noises. Just a heads-up: it detects if there is a sound, not what the sound is. If you need to record high-quality audio or recognize specific words, you might want to look at our more advanced microphone amplifiers!"
