Product Overview

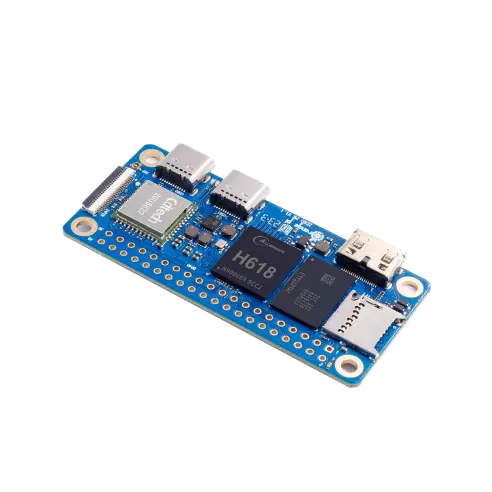

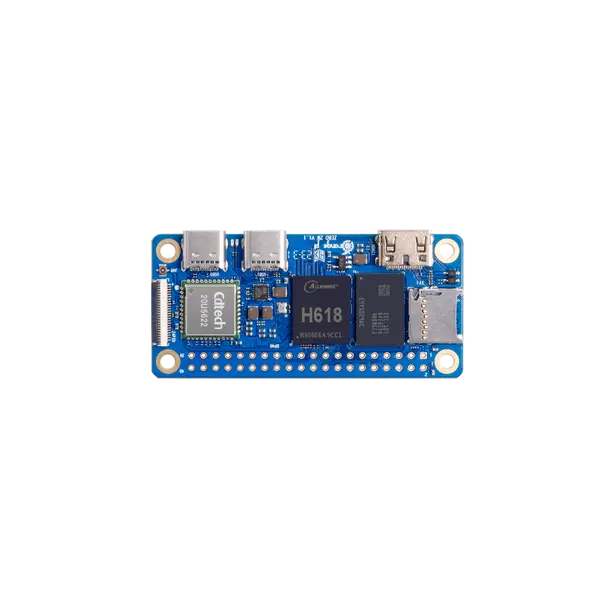

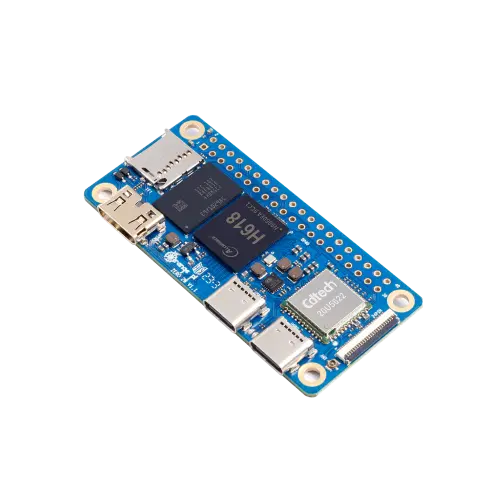

The Orange Pi Zero 2W is a compact, high-performance single-board computer (SBC) designed for IoT, smart home, smart gateway, TV boxes, and smart screen casting devices. It adheres to the classic, exquisite design concept of the Zero series, featuring a tiny PCB size of just 30mm x 65mm. Powered by the high-performance Allwinner H618 Quad-Core Cortex-A53 processor, the Zero 2W offers robust functionality and multiple memory options to suit various application needs.
Key Features:
- Processor: Allwinner H618 Quad-Core Cortex-A53 @ 1.5GHz
- Memory: Available 2GB LPDDR4
- Wireless: On-board Wi-Fi 5 (2.4G/5G dual-band) and Bluetooth 5.0
- Video: Mini HDMI 2.0 port supporting 4K@60FPS
- Storage: 16MB SPI Flash and a Micro SD card slot

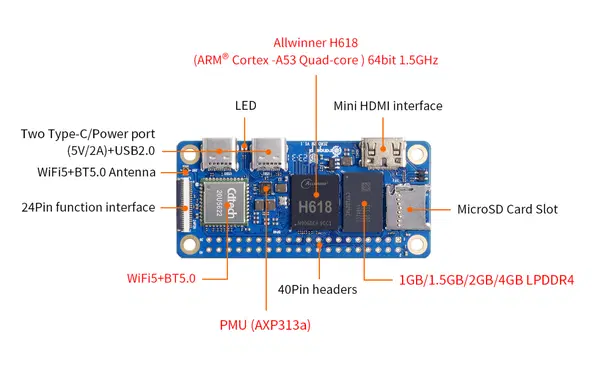

Component Specification
CPU Allwinner H618 Quad-Core Cortex-A53 Processor @ 1.5GHz
GPU Mali G31 MP2 (Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1)
RAM (Memory) LPDDR4: 2GB
On-board Storage 16MB SPI Flash
External Storage 1*Micro SD card interface
Wireless Connectivity Wi-Fi5.0 + BT 5.0 (2.4G/5G Dual-band)
Video Output 1*Mini HDMI TX 2.0 port (Supports 4K@60FPS)
USB Ports 2* Type-C USB 2.0
Power Source Type-C 5V2A or Type-C 5V3A

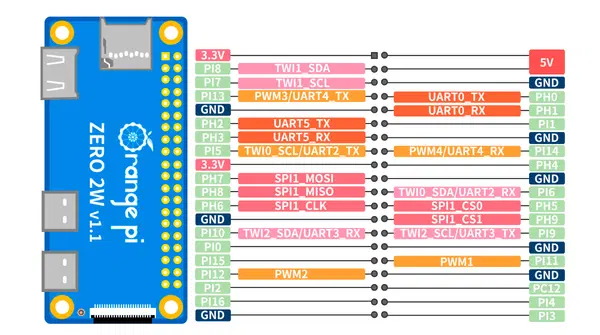

Expansion Interfaces (40Pin) GPIO, UART, I2C, SPI, PWM
Expansion Interfaces (24Pin) USB2.0*2, 100M Ethernet, IR receiver, audio output, TV-out, power button, user-defined buttons*2 (Available via adapter board)
Supported OS Android 12 TV, Debian 11/12, Ubuntu 22.04/20.04, Orange Pi OS (Arch)
PCB Dimensions 30mm x 65mm x 1.2mm
Weight 12.5g
Orange Pi 2 W official page: http://www.orangepi.org/html/hardWare/computerAndMicrocontrollers/details/Orange-Pi-Zero-2W.html
Official OS: http://www.orangepi.org/html/hardWare/computerAndMicrocontrollers/service-and-support/Orange-Pi-Zero-2W.html
Official github: https://github.com/orangepi-xunlong
Install Wiring OP: https://github.com/papercodeIN/OrangePi/blob/main/Script/Install_WiringPi/install_wiringpi.sh
http://www.orangepi.org/orangepiwiki/index.php/Orange_Pi_Zero_2W#How_to_install_wiringOP
https://github.com/orangepi-xunlong/wiringOP-Python
