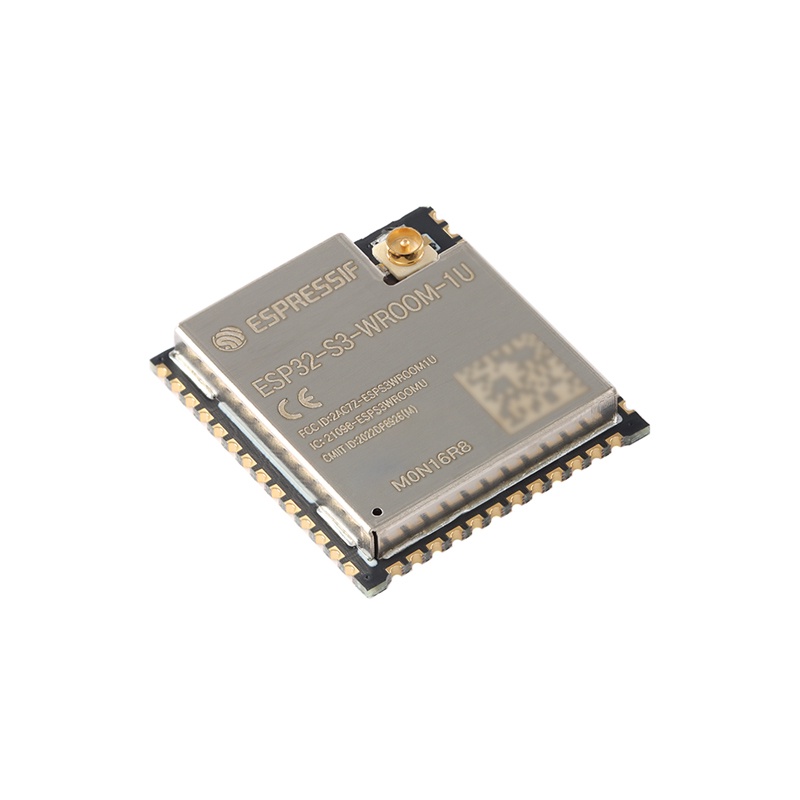

The ESP32-S3-WROOM-1U-N16 is a powerful, next-generation Wi-Fi and Bluetooth LE module specifically designed for AIoT (Artificial Intelligence of Things) applications. This "U" variant features a connector for an external antenna, making it ideal for devices housed in metal or thick enclosures. 🚀
🧠 High-Performance Processing
- Dual-Core Power: Features the Xtensa® 32-bit LX7 dual-core processor, running at up to 240 MHz. ⚡
- AI Acceleration: Includes dedicated instructions for Neural Network and Signal Processing (DSP) workloads, making it significantly faster for voice and image recognition than older ESP32 models. 🤖
📡 Connectivity & Antenna
- External Antenna: Equipped with a U.FL (IPEX) connector. You must use an external antenna for wireless communication. 🔌
- Wi-Fi: 802.11 b/g/n with support for 2.4 GHz. 🌐
- Bluetooth 5.0: Features Bluetooth Low Energy (LE) with high-speed (2 Mbps) and long-range support. 📱
💾 Memory Configuration
- N16: This model comes with a massive 16 MB of Flash storage for large firmware files and assets. 🗄️
- SRAM: 512 KB internal SRAM for high-speed data handling. 💾
- Extended GPIO: Features 45 programmable GPIOs, significantly more than the standard ESP32, allowing for complex sensor arrays. 🛠️
⚙️ Technical Specifications
- Security: Features secure boot, flash encryption, and hardware cryptographic accelerators (AES, SHA, RSA, etc.). 🔒
- Peripheral Interfaces: Supports SPI, LCD, Camera, UART, I2C, I2S, and high-speed USB (OTG). 🔗
- Operating Voltage: 3.0V to 3.6V. ⚡
💡 Shop Note
If you are looking for the best performance for AI or voice-controlled projects, this S3 model is exactly what you need. It's much faster than the standard ESP32 and has enough flash for very large programs. Just remember: this '1U' version requires an external antenna to connect to Wi-Fi. It’s perfect if you're putting your project inside a metal box or need to extend the range with a high-gain antenna!"
