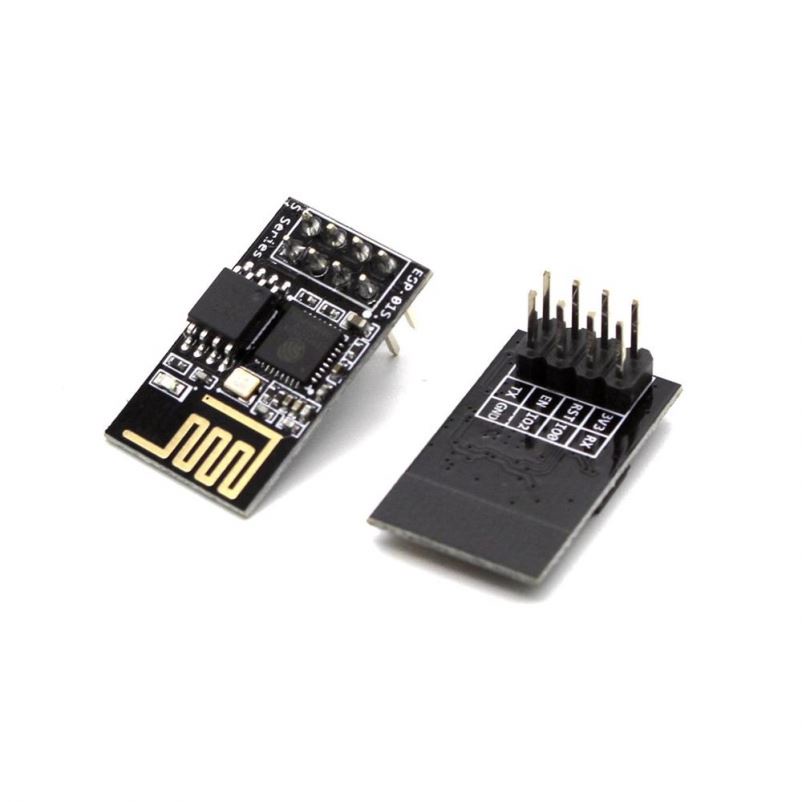

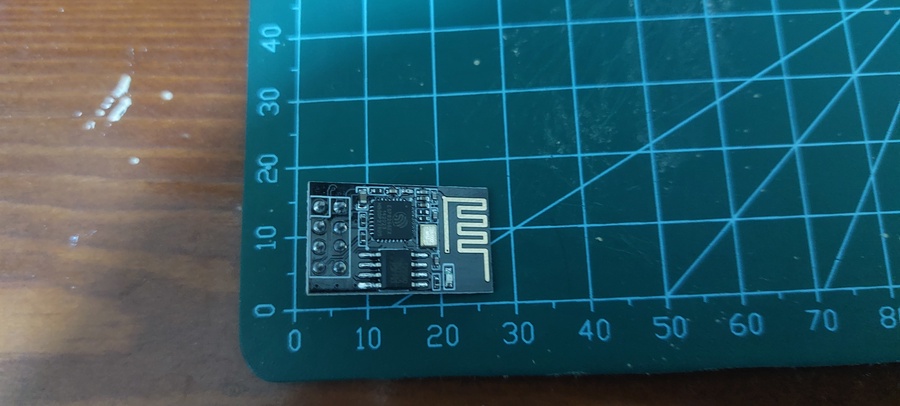

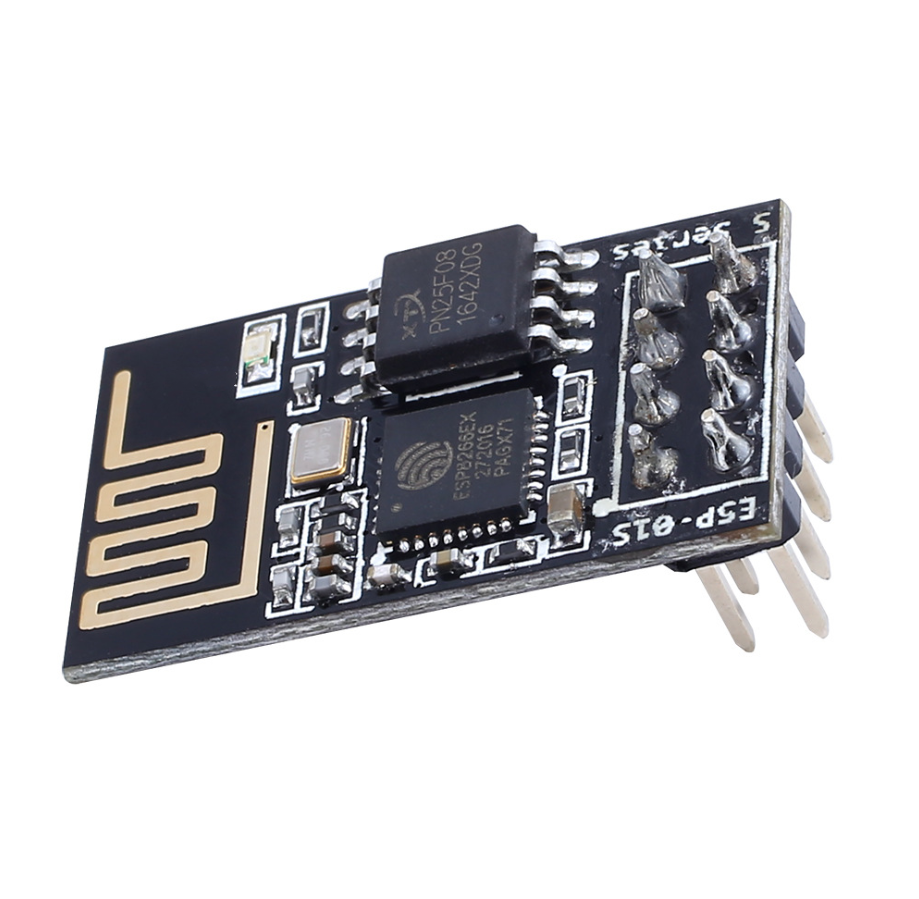

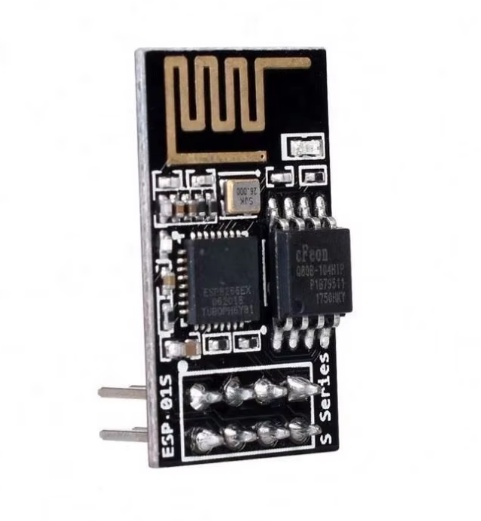

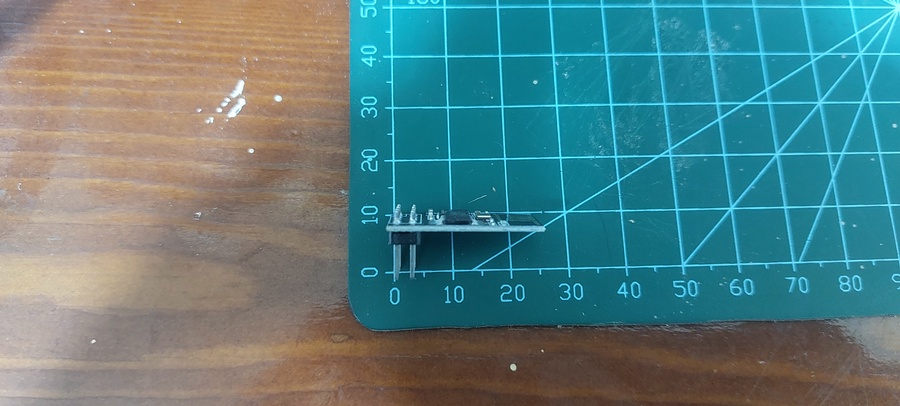

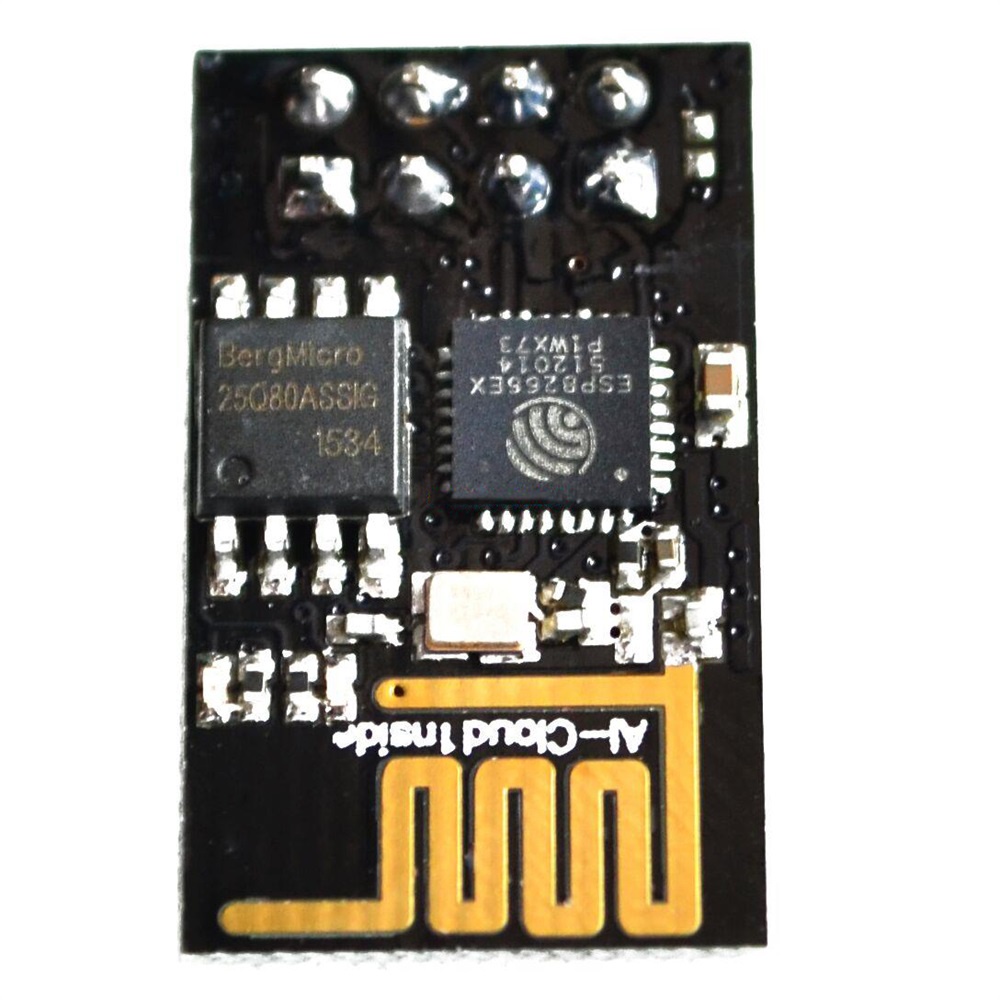

ESP-01S Wi-Fi Serial Transceiver Module

📶 Ultra-Compact ESP-01S Wi-Fi Serial Transceiver Module

The ESP-01S is a highly popular, ultra-compact Wi-Fi module based on the Espressif ESP8266 SoC. It is designed for rapid integration into embedded systems and functions as a serial Wi-Fi transceiver, enabling instant wireless connectivity for almost any microcontroller (such as Arduino) using simple UART AT commands.

Thanks to its tiny footprint, low power consumption, and low cost, the ESP-01S is ideal for space-constrained and battery-powered applications while still providing full TCP/IP networking capabilities.

✨ Key Features and Benefits

FeatureSpecificationProject BenefitCore ChipESP8266EXMassive community support and mature software ecosystemMax RF Output PowerUp to +19.5 dBm (802.11b)Reliable long-range communicationAntennaIntegrated PCB antennaNo external RF components requiredDeep-Sleep Current< 10 µAExcellent for low-power and battery-operated designsFlash Memory1 MBSufficient for firmware, AT commands, and simple web serversCPU32-bit low-power MCURuns full TCP/IP stack and user applications

🌐 Networking and Protocol Support

The ESP-01S is a complete standalone networking solution and includes all required RF and protocol components:

• Wi-Fi Standards:
• IEEE 802.11 b/g/n (2.4 GHz)
• Integrated Protocol Stack:
• Full TCP/IP stack on-chip
• No networking code required on the host MCU
• Operating Modes:
• Station (STA) – Connects to an existing Wi-Fi network
• Soft-AP – Creates its own access point
• Wi-Fi Direct (P2P) – Device-to-device communication
• Security:
• WEP, TKIP, AES, and WAPI encryption
• Hardware-accelerated security engines

🔌 Integration and Interfacing

• Operating Voltage:
• 3.0–3.6 V DC (3.3 V nominal)
• ⚠ Important: Applying 5 V directly will permanently damage the module.

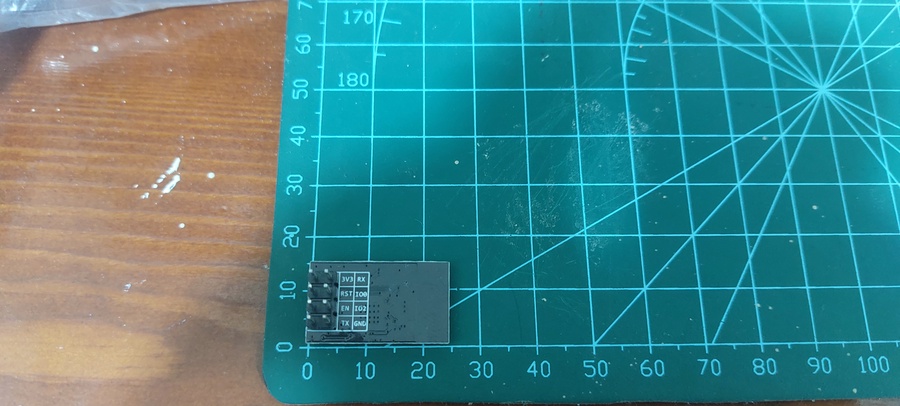

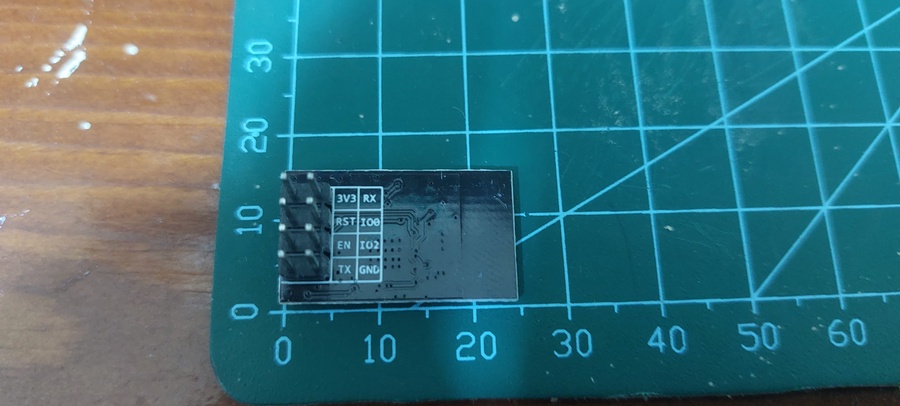

• Exposed Interfaces (ESP-01S):
• UART (Serial) – Primary interface for AT commands and firmware flashing
• GPIOs are limited compared to other ESP8266 modules

Note: While the ESP8266 internally supports SPI and SDIO, these interfaces are not exposed on the ESP-01S module.

• Integrated RF Components:
• TR switch
• Balun
• Low-noise amplifier (LNA)
• Power amplifier
• RF matching network

No external RF circuitry is required.

📌 Typical Applications

• IoT sensors and actuators
• Serial-to-Wi-Fi bridges
• Smart switches and relays
• Low-cost wireless prototypes
• Battery-powered embedded devices

References

1. Espressif Systems – ESP8266EX Datasheet
2. Official electrical characteristics, power consumption, RF output power, and protocol support.
3. Espressif – ESP-01S Module Documentation
4. Module-specific pinout, flash size, and exposed interfaces.
5. ESP8266 AT Command Set Documentation
6. Details on UART operation, networking commands, and operating modes.
