ESP32 WROOM 2.8 Inch Display 240*320 CYD - LVGL Resistive Touch LCD TFT Module

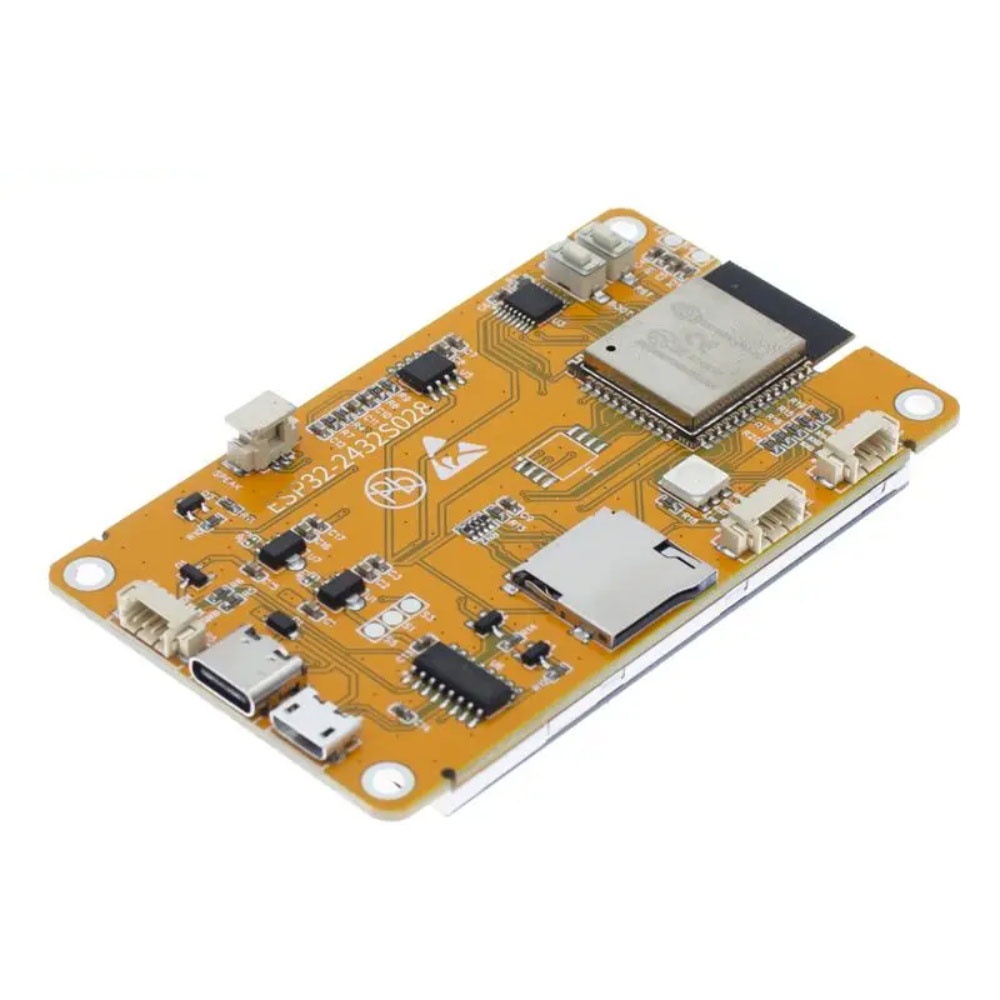

the famouse CYD (Cheap Yellow Display), this module is a highly versatile, all-in-one development board. It combines an ESP32 microcontroller with a high-quality touchscreen, making it a favorite for creating smart home interfaces and handheld IoT devices. 📱✨

🖥️ Display & Visuals

• Screen Size: 2.8-inch color TFT LCD.
• Resolution: 240 x 320 pixels (standard QVGA).
• Color Support: 16-bit RGB 65K colors for rich, vibrant graphics.

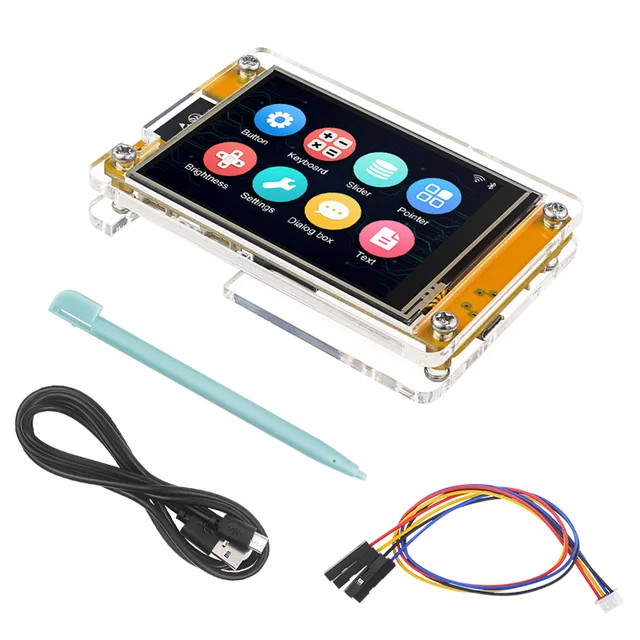

• Touch Capability: Integrated resistive touch screen for interactive user interfaces with pen.
• UI Support: Optimized for the LVGL (Light and Versatile Graphics Library) to create professional-looking dashboards.

🧠 Core Processing Power

• Microcontroller: Features a low-power, dual-core 32-bit CPU.
• Speed: Main frequency runs up to 240MHz.
•

• Performance: Delivers computing power up to 600 DMIPS.
• Internal Memory: Built-in 520KB SRAM for efficient task handling.
•


📡 Connectivity & Networking

• Wireless: Fully integrated Wi-Fi and Bluetooth module.
•

• Easy Pairing: Supports Smart Config and Airkiss for "one-key" network configuration via smartphone.

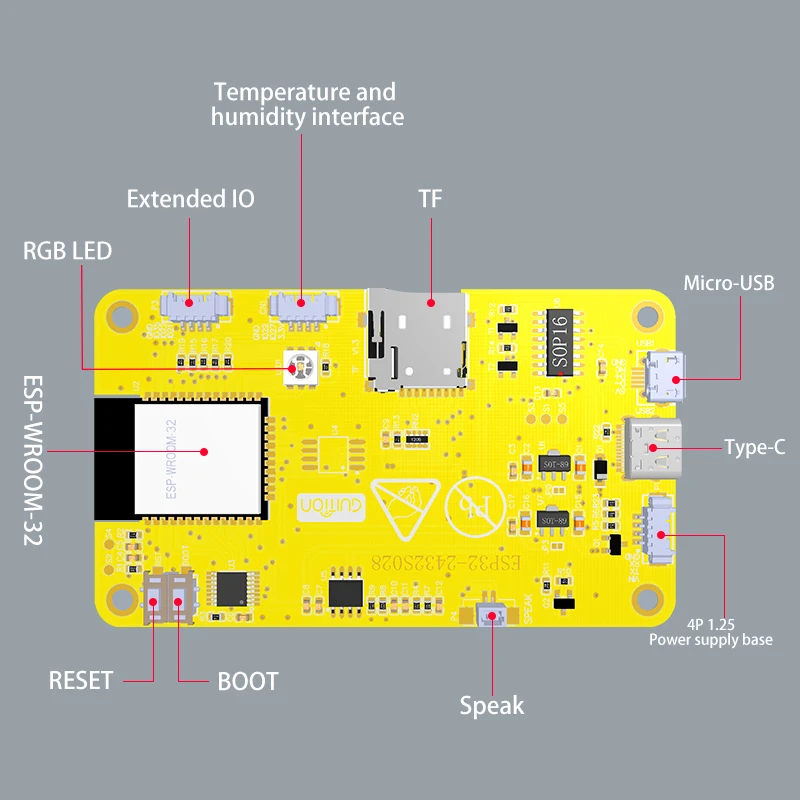

🔌 Interfaces & Expandability

• Storage: Equipped with an integrated TF (MicroSD) card slot, allowing for easy storage of icons, images, and data logs.
•

• Peripheral Support: Provides interfaces for UART, SPI, PWM, DAC, and ADC.
• Versatility: Can be used as a standalone application processor or a peripheral controller.

📦 Physical Specs

• Origin: Manufactured in Guangdong, China.
• Package Weight: Lightweight design at approximately 0.157 kg.
• Dimensions: Single package size is roughly 15 x 10 x 6 cm.

🚀 Example Library

The most popular library for utilizing the display and touch functionality is the TFT_eSPI library. 📚

GitHub Reference: https://github.com/Bodmer/TFT_eSPI and https://github.com/witnessmenow/ESP32-Cheap-Yellow-Display/blob/main/PROJECTS.md
