📶 2.4 GHz 3 dBi Antenna with IPEX Pigtail

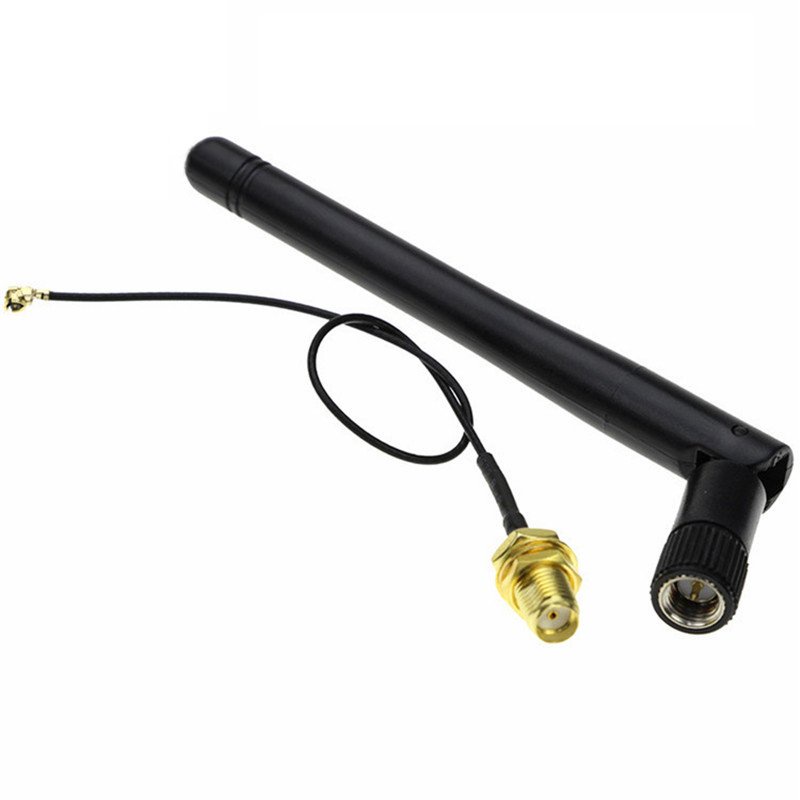

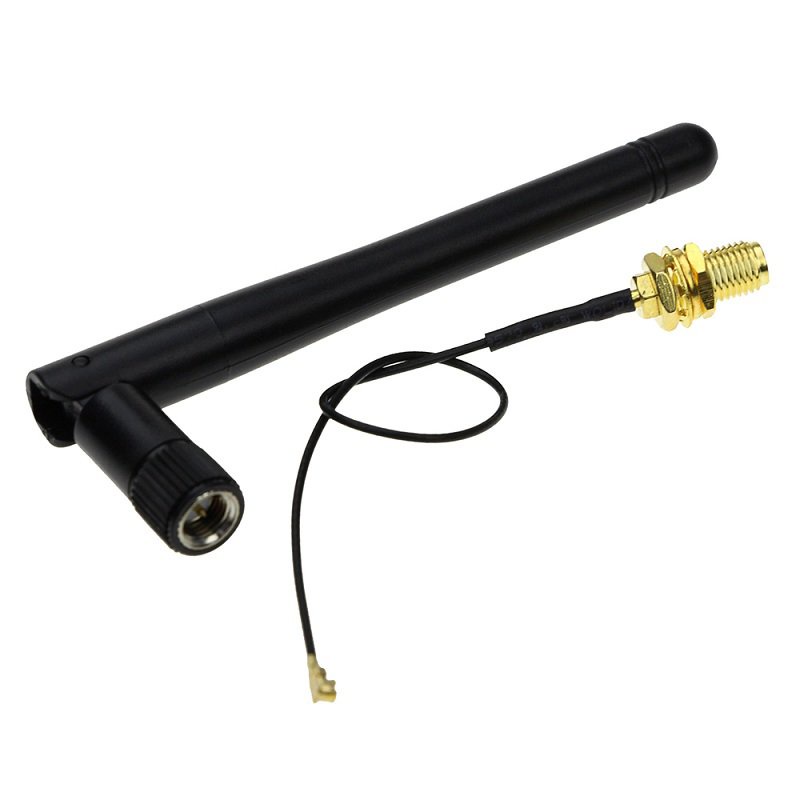

A 2.4 GHz Wi-Fi antenna with an articulating SMA male connector, supplied with an SMA female bulkhead to IPEX/U.FL pigtail. It is a simple way to move an antenna outside an enclosure or improve reception on a board that only has a tiny onboard antenna.
✨ Key Features
• 2.4 GHz antenna with 3 dBi gain

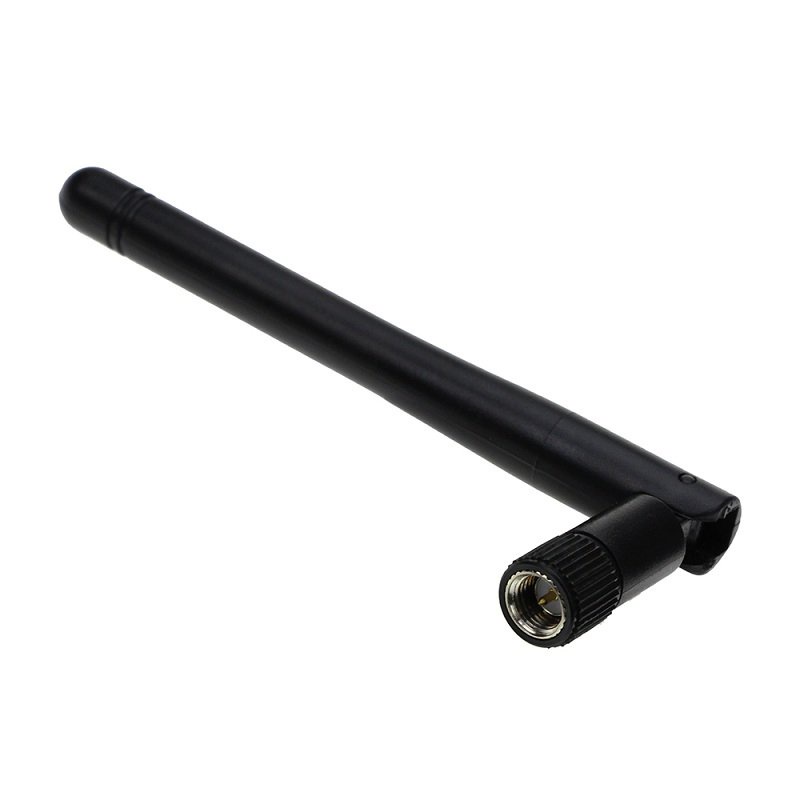

- Articulated SMA male connector — angle it for best reception

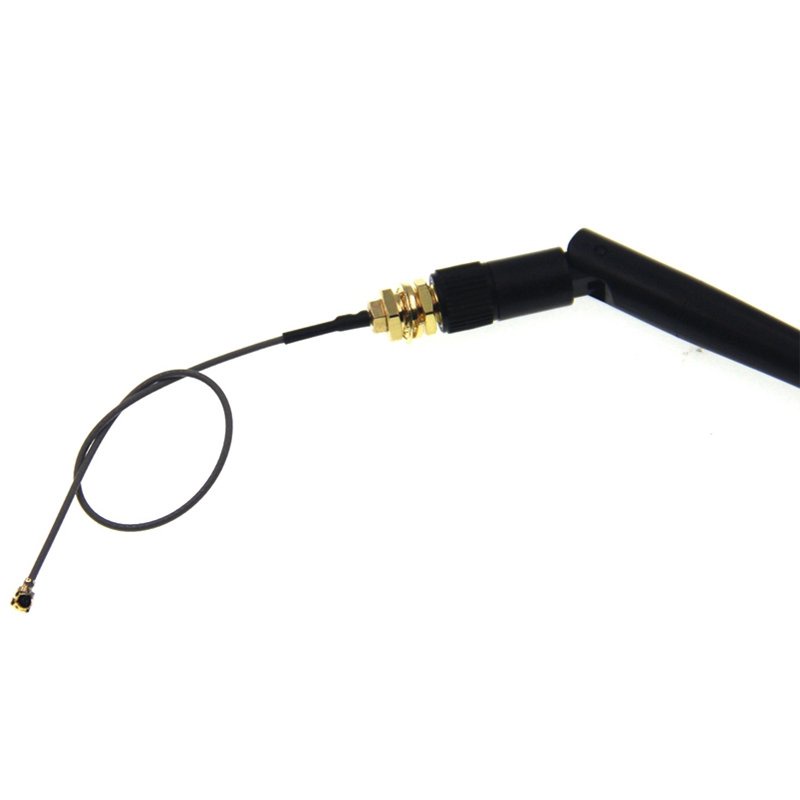

- Includes SMA female bulkhead to IPEX/U.FL pigtail cable
- Suits ESP8266, ESP32 and other 2.4 GHz modules with an IPEX connector
- Panel-mount pigtail lets you route the antenna outside a box
- Compact, lightweight and easy to install
🔬 Specifications
- Frequency: 2.4–2.5 GHz
- Gain: 3 dBi

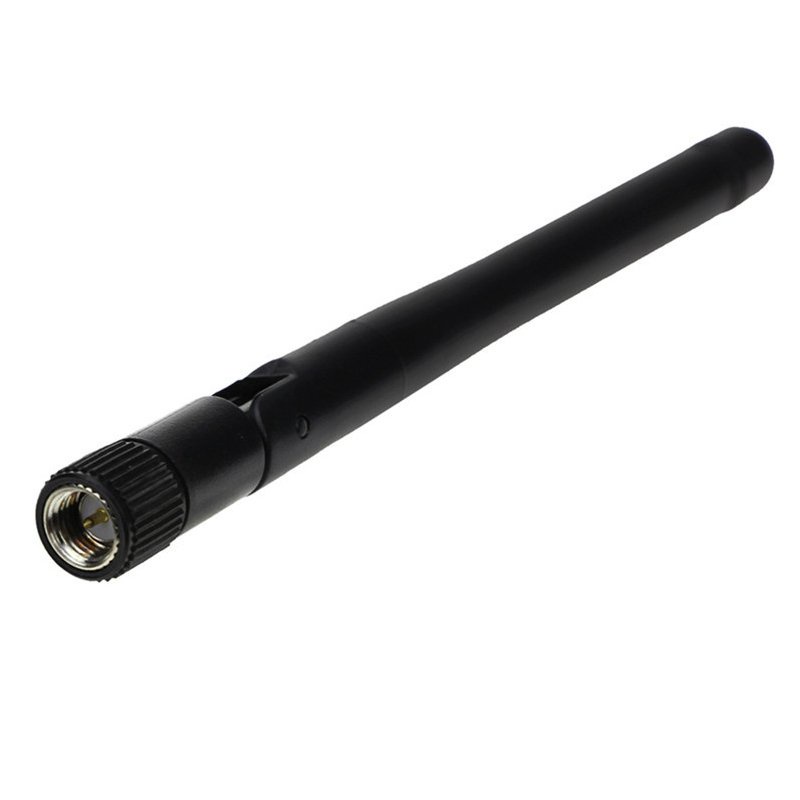

- Antenna connector: SMA male, articulating

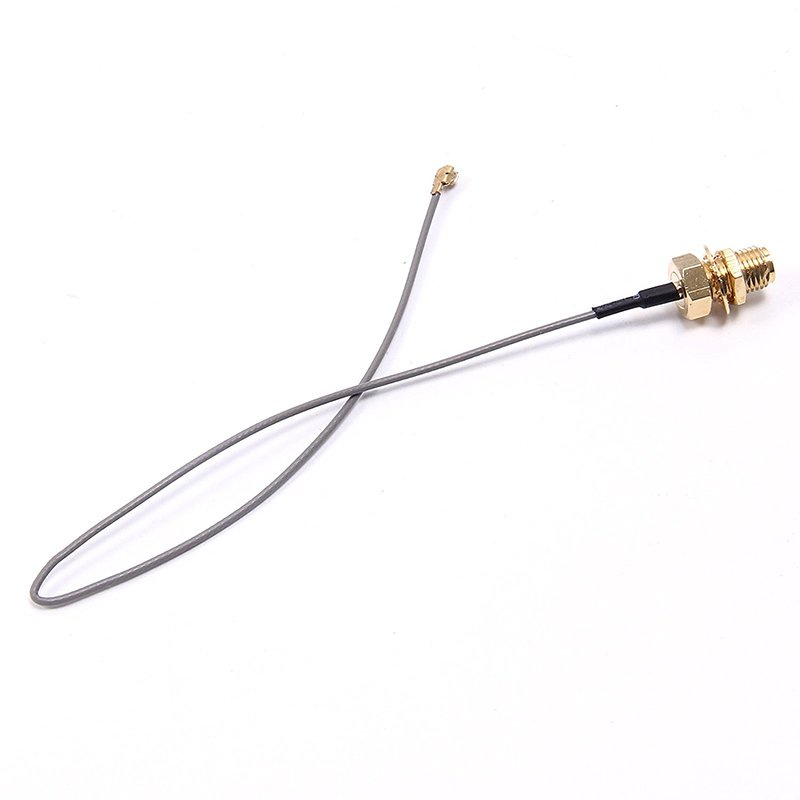

- Pigtail: IPEX/U.FL (MHF1) to SMA female bulkhead
- Impedance: 50 Ω
- Polarisation: vertical
- Cable: short flexible pigtail with gold-plated connectors
🧰 Perfect for
• ESP8266 and ESP32 boards with IPEX/U.FL pads
• NRF24L01 and other 2.4 GHz radio modules
- Wi-Fi routers, adapters and access points
- Extending range in sheds, garages and outdoor enclosures
• Custom IoT and mesh nodes
Tip: keep the pigtail away from metal surfaces and bend it gently for the best signal.
